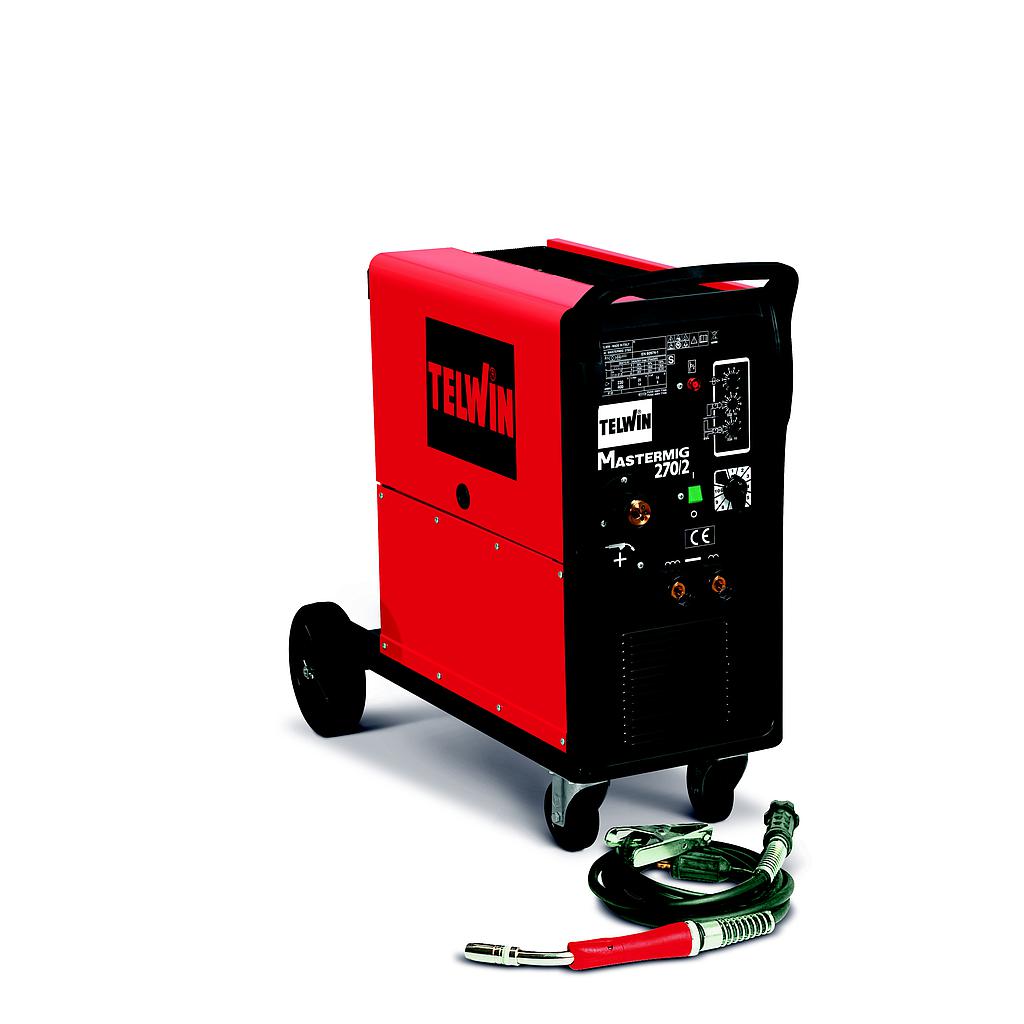

Telwin MASTERMIG 270/2 MIG-MAG 3PH (0.6-1.2mm, 0.8-1mm)

MAX NO LOAD VOLTAGE: 37,3 V

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 9 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT: 60% 5,5 kW

BRAZING WIRE DIAM.: 0,8 - 1 mm

CURRENT RANGE: 28 - 270 A

POWER FACTOR (cosphi): 0,9

PROTECTION DEGREE: IP22

MAX CURRENT DC (EN 60974-1): 240 @30 % A

ADJUSTMENT POSITIONS: 10

DIMENSIONS: 87 x 45,3 x 80 cm

DC CURRENT: 160

A STEEL WELDING WIRE DIAMETER: 0,6 -1,2 mm

WEIGHT: 66 kg

Included Accessories

SPACER - 322499

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT25 MIG TORCH 3M - 742183

TORCH HOOK - 644444

FEED ROLL 2R 0,6FE-0,8FE "F" - 742575

CABLE 25MMQ 3M- WORK CLAMP - ATLAS 50MMQ - 713192

DATASHEET

MANUAL
