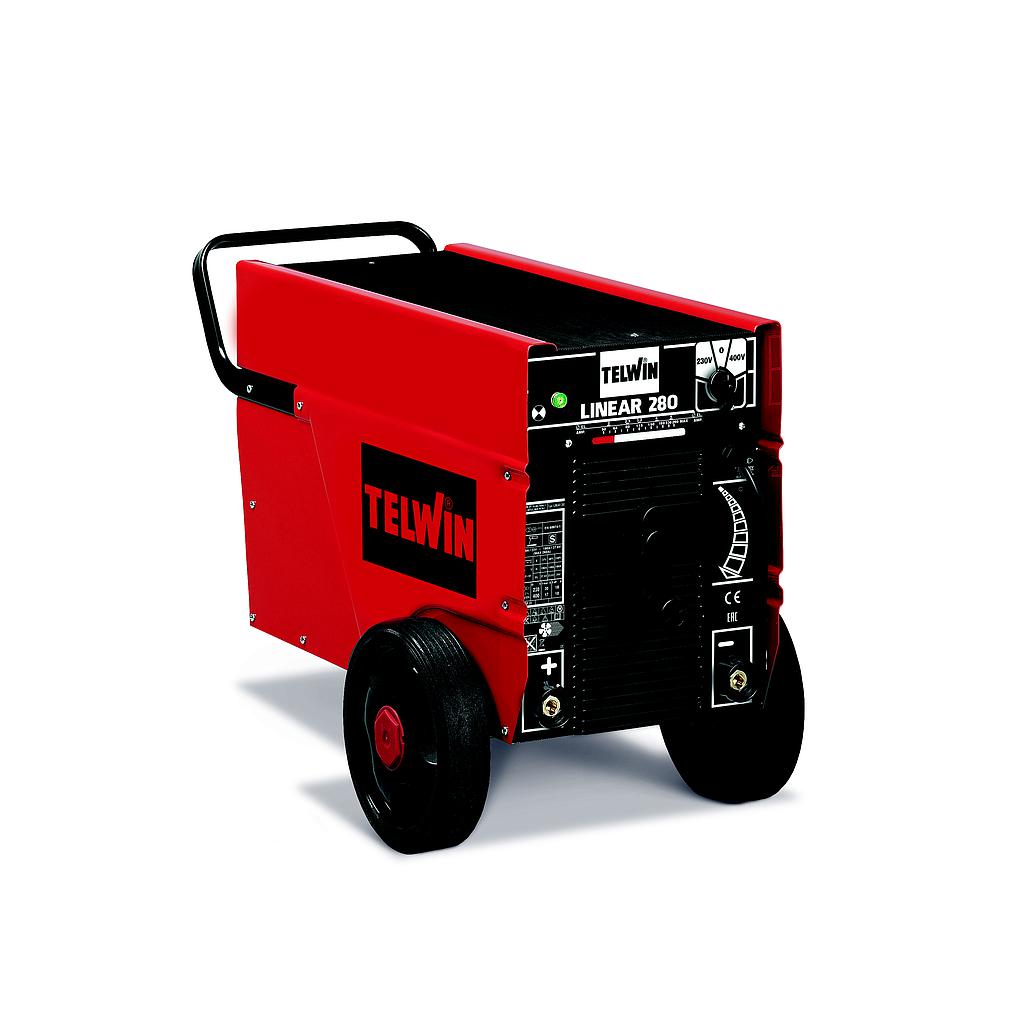

Telwin LINEAR 280 MMA ELETTROMECC. 3PH (1,6 - 5mm)

DC CURRENT: 140 A

PROTECTION DEGREE: IP22

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX NO LOAD VOLTAGE: 62 V

DIMENSIONS: 89 x 46 x 59 cm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 8 kW

WEIGHT: 65 kg

CURRENT RANGE: 50 - 260 A

ABSORBED POWER AT 60% 5 kW

MAX CURRENT DC (EN 60974-1): 190 @35 % A

POWER FACTOR (cosphi): 0,6

PIECES/PALLET:6 pz/pallet

MAX CURRENT DC (EN 60974-1): 230 @25 % A

D. USABLE ELECTRODES IN DC: 1,6 - 5mm

PIECES/PALLET - B: 3 pz/pallet-B
