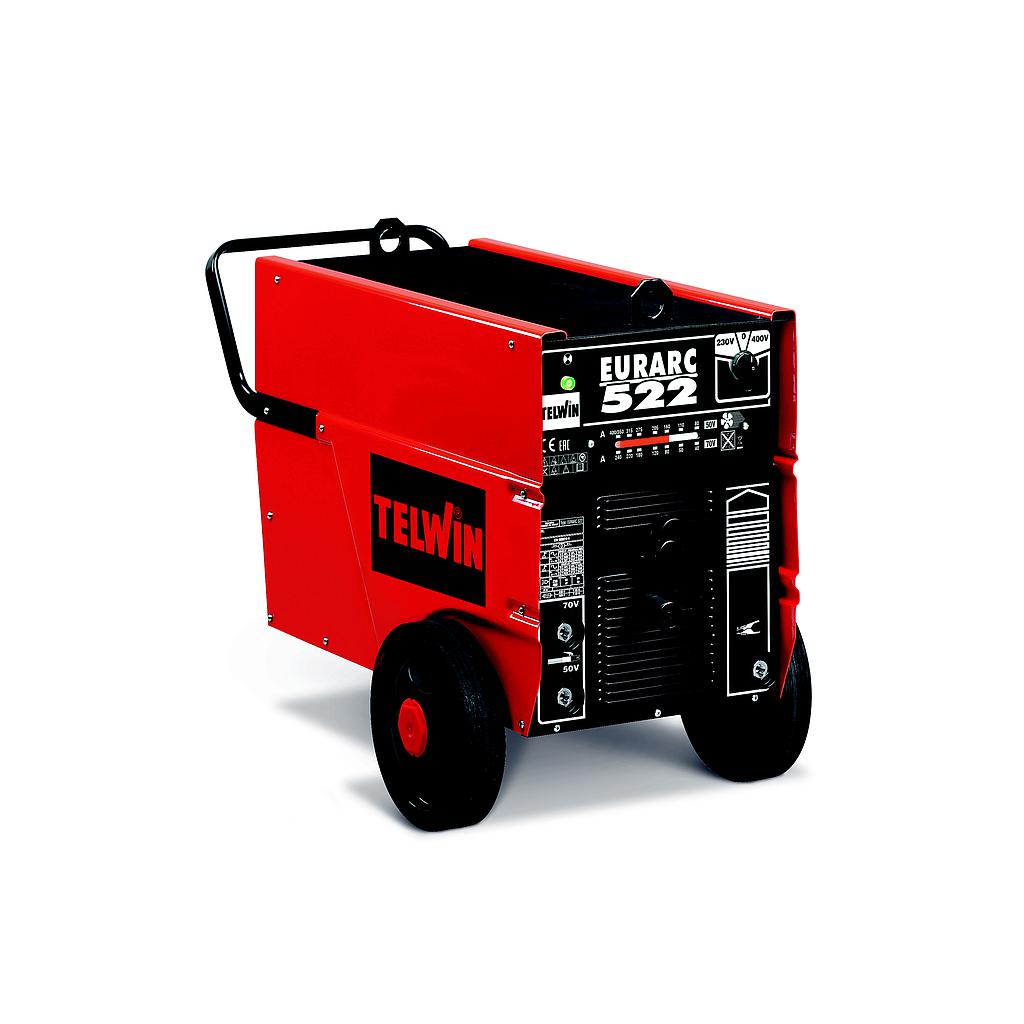

Telwin EURARC 522 MMA ELETTROMECC. 1PH (1.6mm - 6mm)

AC CURRENT: 265 A

PROTECTION DEGREE: IP22

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE: 52 - 71 V

DIMENSIONS: 95 x 49 x 68 cm

DOUBLE PHASE MAINS VOLTAGE: 400 V

MAX ABSORBED POWER: 15 kW

WEIGHT: 81 kg

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 11 kW

CURRENT RANGE: 40 - 400 A

POWER FACTOR (cosphi): 0,7

PIECES/PALLET: 6 pz/pallet

MAX CURRENT (EN 60974-1): 350 @ 35% A

D. USABLE ELECTRODES IN AC: 1,6 - 6mm

PIECES/PALLET - B: 3 pz/pallet-B

MAX CURRENT (EN 60974-1): 400 @ 25% A
