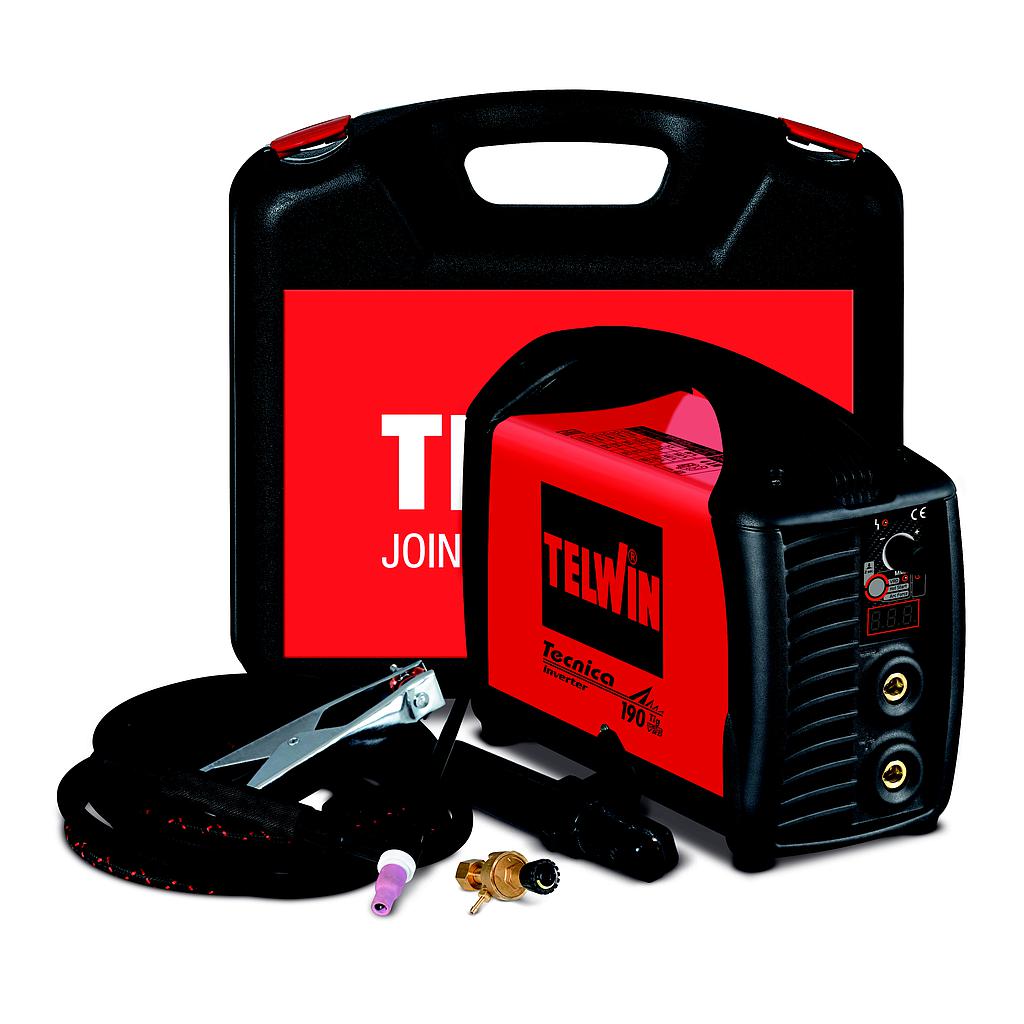

Telwin TECNICA 190 TIG/MMA DC LIFT TIG 1PH (1,6~4mm)

DC CURRENT: 110 A

MOTORGENERATOR MINIMUM POWER: 6 kW

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE: 78 V

MAINS FUSE: 16 A

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED CURRENT: 29 A

EFFICIENCY: 86 V

CURRENT RANGE: 10 - 170 A

ABSORBED CURRENT AT 60% - MAX 17 A

POWER FACTOR (cosphi): 0,7

% USE (20°C USE): 88% @ 150A %

MAX ABSORBED POWER: 4,4 kW

D. USABLE ELECTRODES IN DC: 1,6 - 4 mm

MAX CURRENT DC (EN 60974-1): 160 @20 % A

ABSORBED POWER AT 60% 2,6 kW

Included Accessories

CABLE 25 MMQ 3 M PLUG ATLAS 25 - 124466

DALLAS 300 ELECTRODE HOLDER 300A - 712260

PLASTIC CARRY CASE - 322800

GAS REGULATOR REFILLABLE BOTTLE - 722341

TOLEDO 250 WORK CLAMP 250A - 712030

ST9V TIG TORCH AX25 4M - 722563
