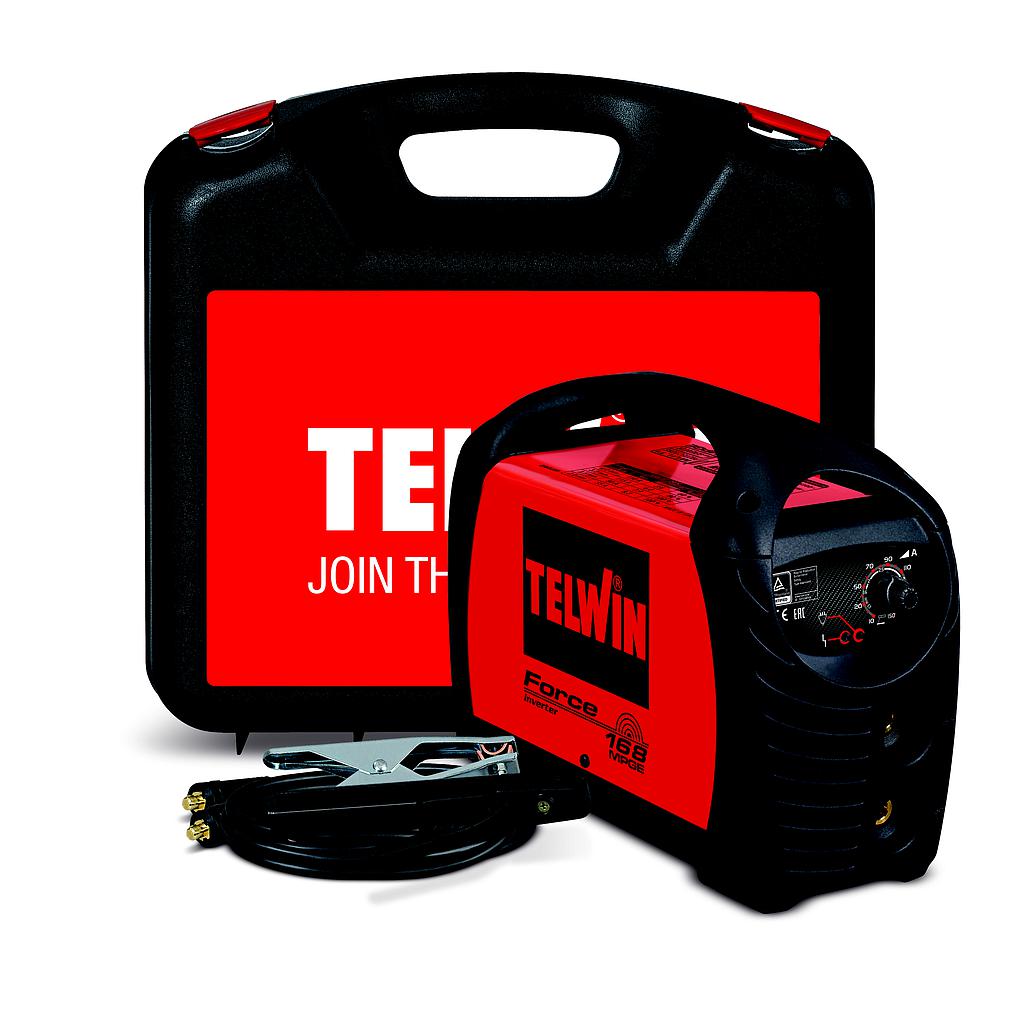

Telwin FORCE 168 MPGE MMA INVERTER (1,6~4mm)

MAX ABSORBED CURRENT: 31 A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED POWER: 4,1 kW

PROTECTION DEGREE: IP21

MAINS FREQUENCY: 50 / 60 Hz

MOTORGENERATOR MINIMUM POWER: 6 kW

DIMENSIONS: 38 x 42 x 17 cm

CURRENT RANGE: 10 - 150 A

MAINS FUSE: 16 A

WEIGHT: 5,5 kg

%USE (20°C USE): 60% @ 150A %

EFFICIENCY: 82 V

MAX CURRENT DC (EN 60974-1): 140 @ 7% A

POWER FACTOR (cosphi): 0,6

PIECES/PALLET: 36 pz/pallet

MAX NO LOAD VOLTAGE: 72 V

Included Accessories

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25 - 124508

SLAG REMOVER - 712139

PLASTIC CARRY CASE - 322800

DALLAS 300 ELECTRODE HOLDER 300A - 712260

TOLEDO 250 WORK CLAMP 250A - 712030
