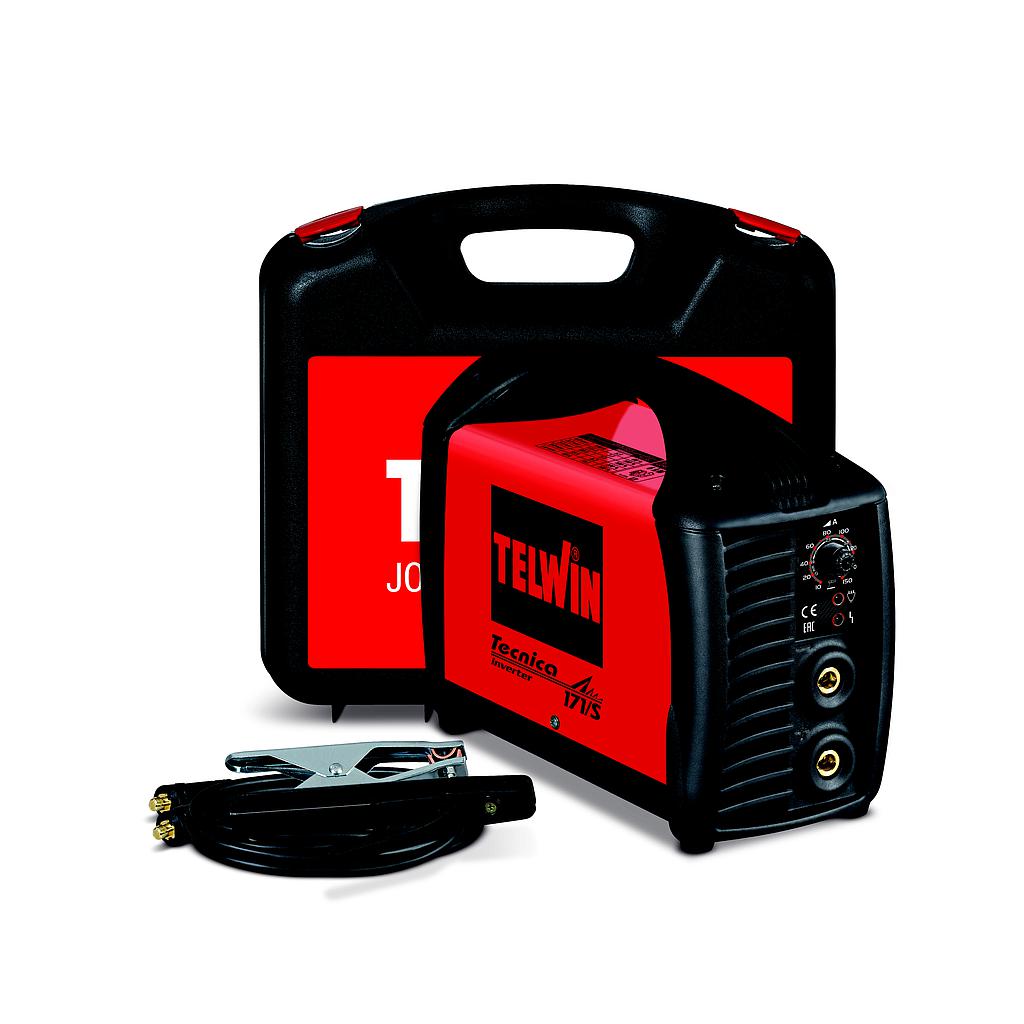

Telwin TECNICA 171/S MMA INVERTER (1,6 - 4mm)

DC CURRENT: 95 A

MOTORGENERATOR MINIMUM POWER:M6 kW

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX NO LOAD VOLTAGE 75 V MAINS FUSE: 16 A

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED CURRENT: 28 A

EFFICIENCY: 86 V

CURRENT RANGE: 10 - 150 A

ABSORBED CURRENT AT 60% - MAX 17A

POWER FACTOR (cosphi): 0,7

%USE (20°C USE) 88% @ 150A %

MAX ABSORBED POWER: 4,2 kW

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

MAX CURRENT DC (EN 60974-1): 140 @ 25 % A

ABSORBED POWER AT 60% 2,6 kW

PROTECTION DEGREE: IP23

Included Accessories

CABLE TW05V-A 1X025 1.80M PLUG ATLAS - 124589

TOLEDO 250 WORK CLAMP 250A - 712030

PLASTIC CARRY CASE - 322800

DALLAS 300 ELECTRODE HOLDER 300A - 712260
