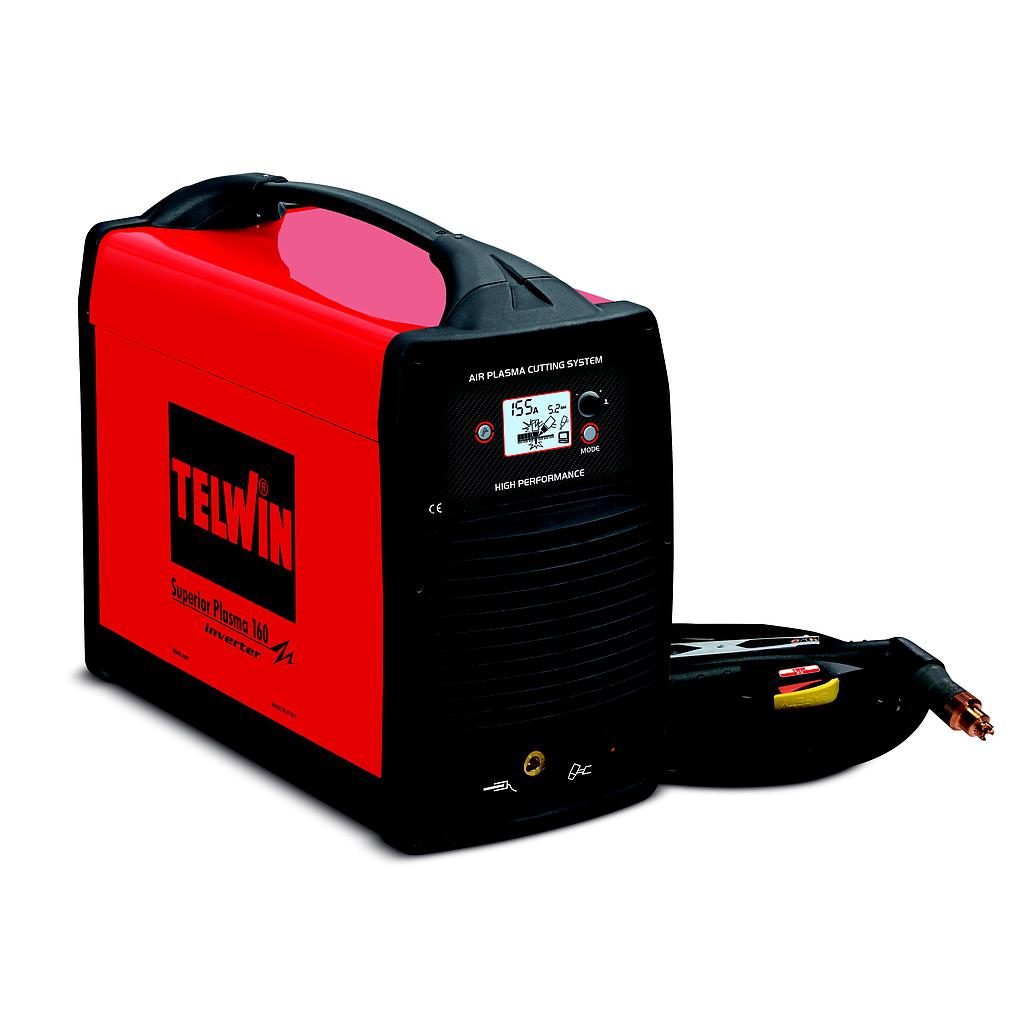

Telwin SUPERIOR PLASMA 160 PLASMA CUTTING

MAX ABSORBED CURRENT: 38 / 40 A

COMPRESSED AIR PRESSURE: 4 - 5 bar

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 12,5 / 25 kW

PROTECTION DEGREE: IP23

MAINS FREQUENCY: 50 / 60 Hz

EFFICIENCY: 86 V

DIMENSIONS: 67 x 31 x 56 cm

CURRENT RANGE: 30 - 100 / 30 - 160 A

POWER FACTOR (cosphi): 0,9

WEIGHT: 46 kg

MAX CURRENT: 100 @ 30% / 150 @ 30% A

MAX CUTTING THICKNESS: 40 / 50 mm

MAX NO LOAD VOLTAGE: 316 / 348 V

COMPRESSED AIR CAPACITY: 290 L/min

Included Accessories

CABLE 0,5 M - PLUG ATLAS - 124863

PX PLASMA TORCH 6 M - 742653

TOLEDO 300 WORK CLAMP - 712231
