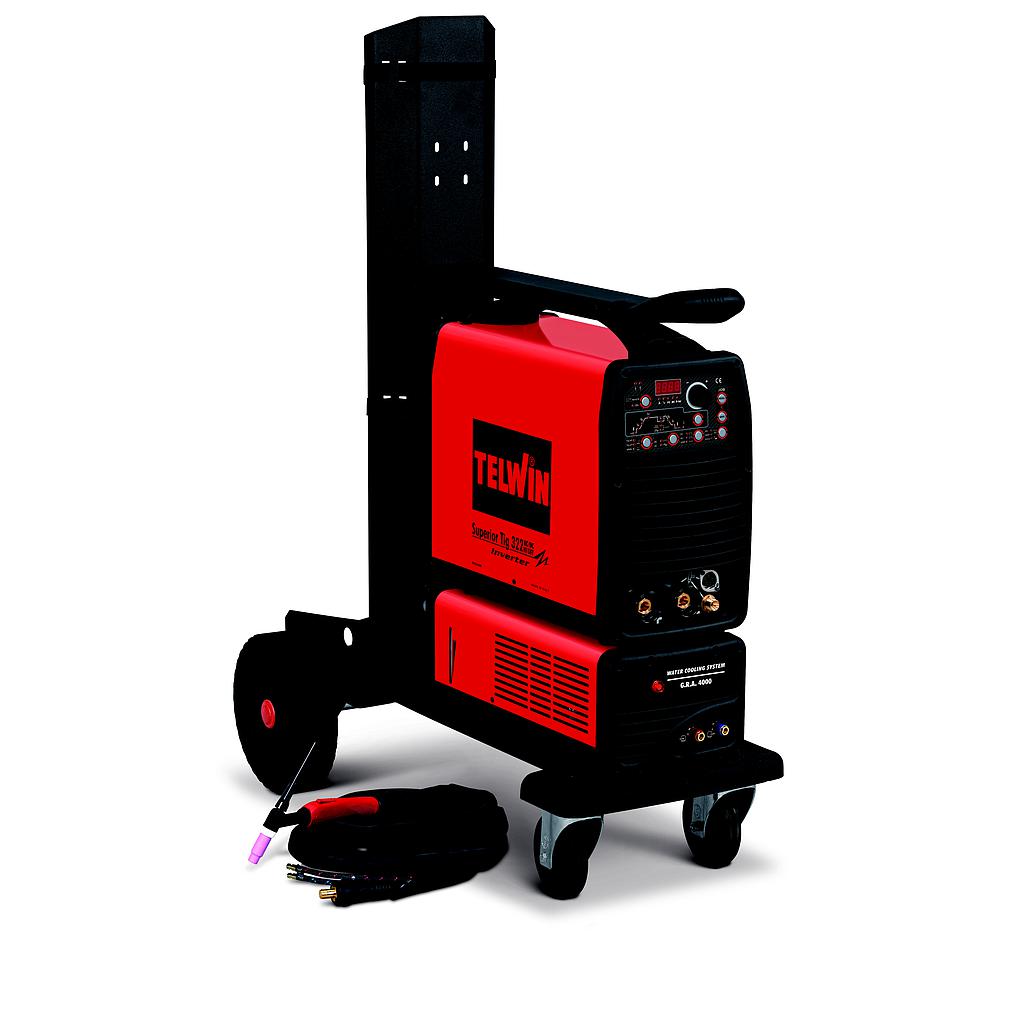

Telwin SUPERIOR TIG 322 AC/DC-HF/LIFT AQUA TIG 3PH (1,6 - 5mm)

MAX NO LOAD VOLTAGE: 64 V

EFFICIENCY: 85 V

THREE PHASE MAINS VOLTAGE: 400 V

MAX ABSORBED CURRENT: 15 A

POWER FACTOR (cosphi): 0,92

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 11A

D. USABLE ELECTRODES IN DC: 1,6 - 5mm

CURRENT RANGE: 5 - 270 A

MAX ABSORBED POWER: 10 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 270 @40 % A

ABSORBED POWER AT: 60% 7 kW

DIMENSIONS: 93,5 x 50 x 119,5 cm

DC CURRENT: 215 A

MAINS FUSE: 16 A

WEIGHT: 68 kg

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

ST18A TIG TORCH AX50 4M AQUA - 742615

TOLEDO 300 WORK CLAMP - 712231

G.R.A. 4000 WATER COOLING UNIT 230V - 802640

CABLE 25 MMQ 3 M ATLAS 50MMQ - 713504

TROLLEY - MONDIAL - 803072

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119
