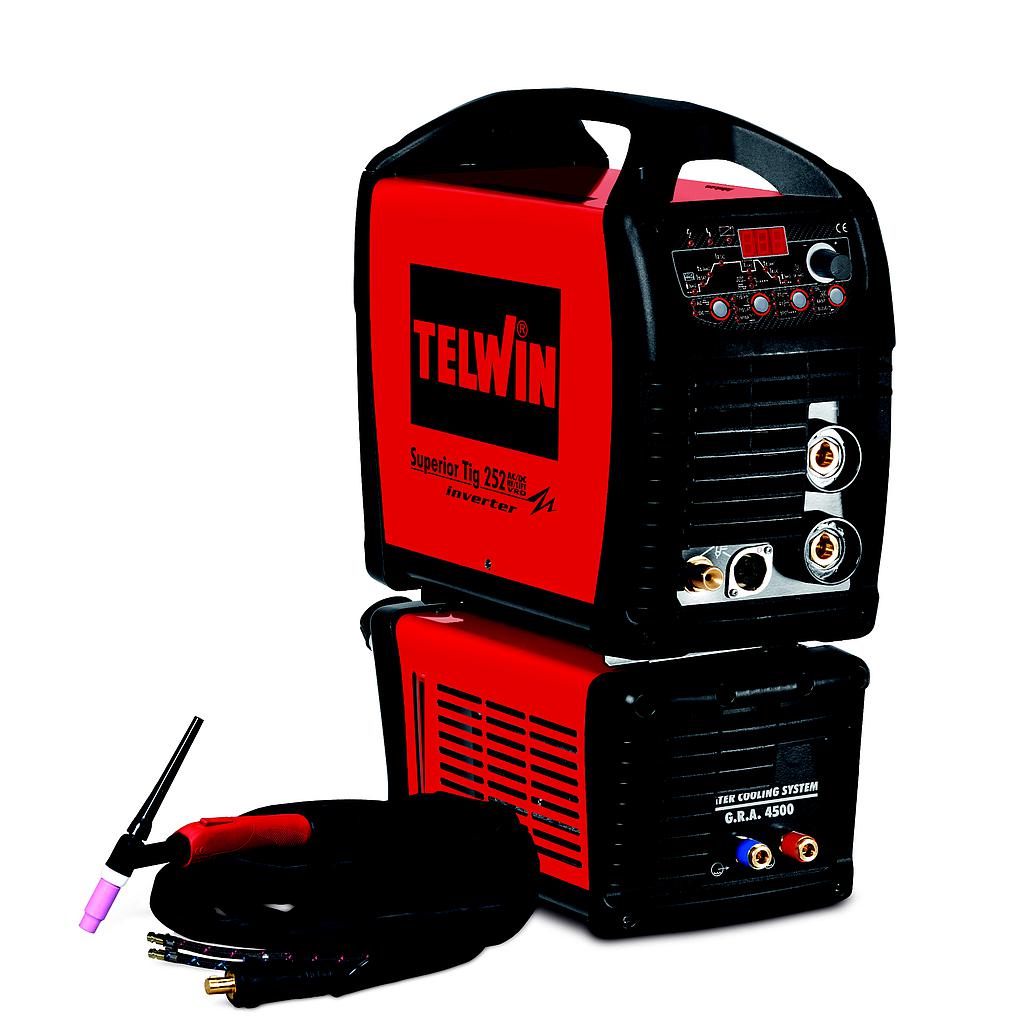

Telwin SUPERIOR TIG 252 AC/DC HF/LIFT AQUA TIG 3PH (1,6 - 5mm)

MAX NO LOAD VOLTAGE: 102 V

EFFICIENCY: 85 V

THREE PHASE MAINS VOLTAGE: 400 V

MAX ABSORBED CURRENT: 12,2 A

POWER FACTOR (cosphi): 0,8

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 6A

D. USABLE ELECTRODES IN DC: 1,6 - 5mm

CURRENT RANGE: 5 - 250 A

MAX ABSORBED POWER: 7,5 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 230 @20 % A

ABSORBED POWER AT: 60% 3,3 kW

DIMENSIONS: 51 x 19 x 53,5 cm

DC CURRENT: 115 A

MAINS FUSE: 10 A

WEIGHT: 25 kg

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

TOLEDO 300 WORK CLAMP - 712231

ST18A TIG TORCH AX50 4M AQUA - 742615

CABLE 25 MMQ 3 M ATLAS 50MMQ - 713504

G.R.A. 4500 WATER COOLING UNIT 230V - 802790
