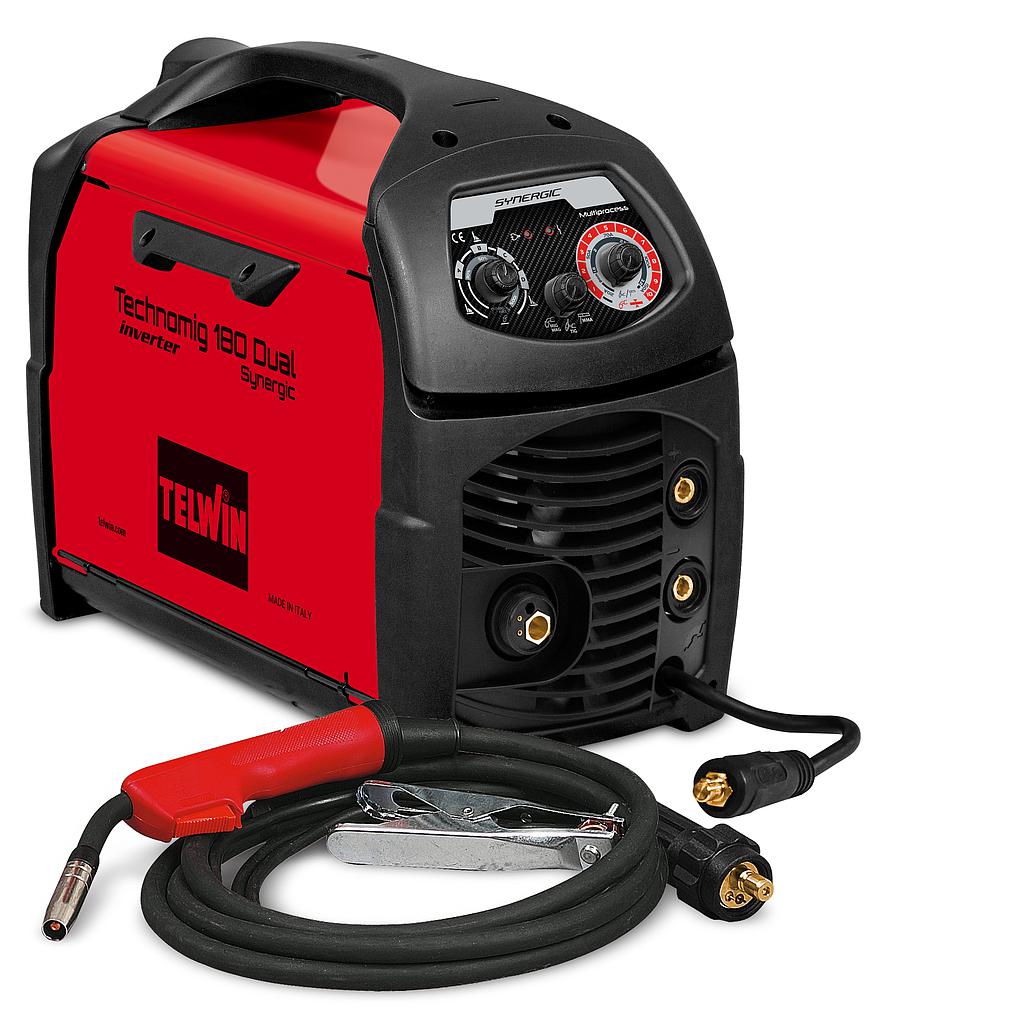

Telwin TECHNOMIG 180 DUAL SYNERGIC MIG-MAG 1PH (1,6-3,2mm)

MAX ABSORBED CURRENT: 22 A

POWER FACTOR (cosphi): 0,7

SINGLE PHASE MAINS VOLTAGE: 230 V

ABSORBED CURRENT AT 60% - MAX 11A

D. USABLE ELECTRODES IN DC: 1,6-3,2mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 3,2 kW

STEEL WELDING WIRE DIAMETER: 0,6 -0,8 mm

CURRENT RANGE: 20 - 170 A

ABSORBED POWER AT 60% 1,6 kW

INOX WELDING WIRE DIAMETER: 0,8mm

MAX CURRENT DC (EN 60974-1): 140 @20% A

MAINS FUSE: 16 A

ALUMINIUM WELDING WIRE DIAM: 0,8- 1 mm

DC CURRENT: 80 A

EFFICIENCY: 86 V

FLUX CORED WELDING WIRE DIAM.: 0,8 - 1,2 mm

MAX NO LOAD VOLTAGE: 44 V

Included Accessories

CABLE TW05V-A 1X025 1.80M PLUG ATLAS - 124589

MT15 MIG TORCH 3M (RED) - 742180

TOLEDO 250 WORK CLAMP 250A - 71203
