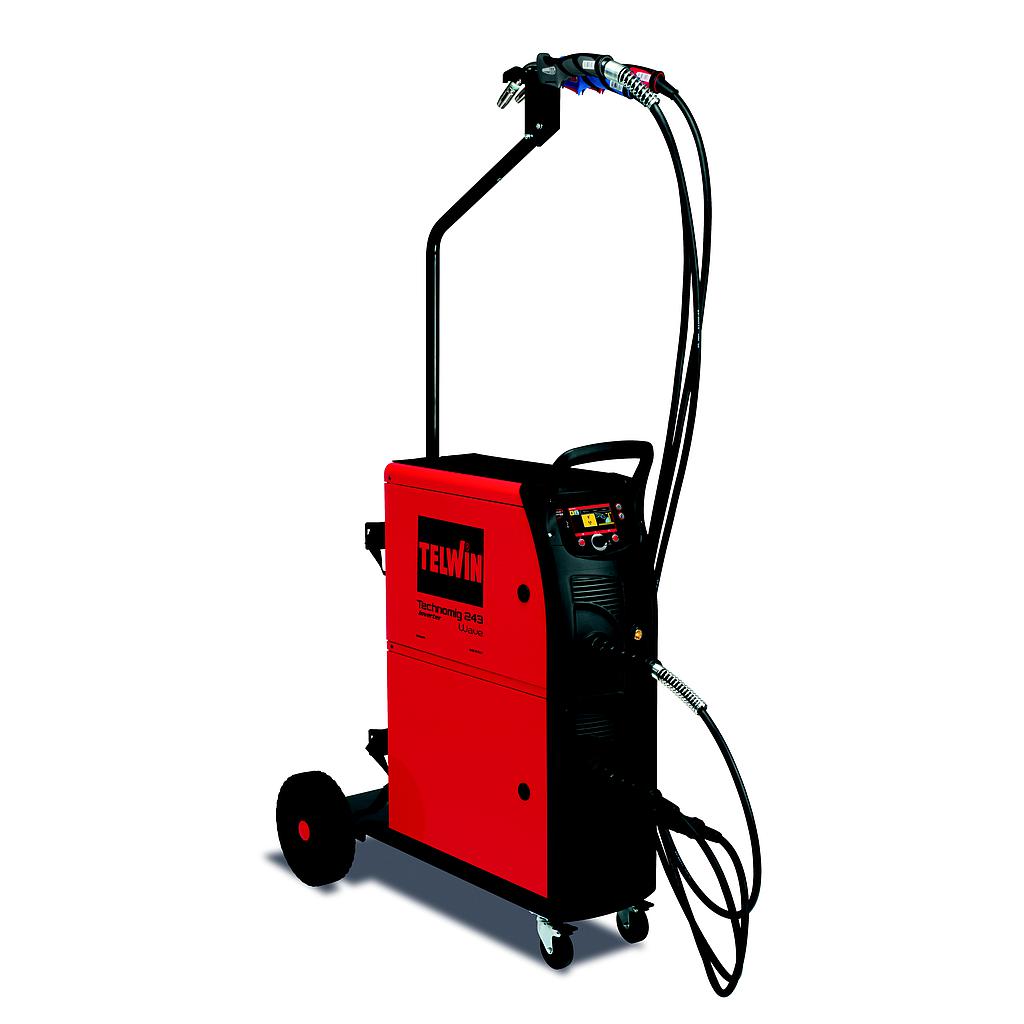

Telwin TECHNOMIG 243 WAVE MIG-MAG 1PH (1,6 - 4mm)

MAX ABSORBED CURRENT: 32 A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

SINGLE PHASE MAINS VOLTAGE: 230 V

ABSORBED CURRENT AT 60% - MAX 16A

STEEL WELDING WIRE DIAMETER: 0,6 -1 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 5 kW

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

CURRENT RANGE: 20 - 220 A

ABSORBED POWER AT 60% 2,3 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1,2 mm

MAX CURRENT DC (EN 60974-1): 180 @20% A

EFFICIENCY: 84 V

FLUX CORED WELDING WIRE DIAM.: 0,8- 1,2 mm

DC CURRENT: 100 A

POWER FACTOR (cosphi): 0,7

BRAZING WIRE DIAM.: 0,8 - 1 mm

MAX NO LOAD VOLTAGE: 96 V

Included Accessories

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ - 713192

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

MT15 MIG TORCH 3M (RED) - 742180

MT25 MIG TORCH 3 M - 742784

FEED ROLL 2R 0,6FE-0,8FE "F" - 742575

MT15 MIG TORCH 3M (BLUE) - 742944

DATASHEET

MANUAL
