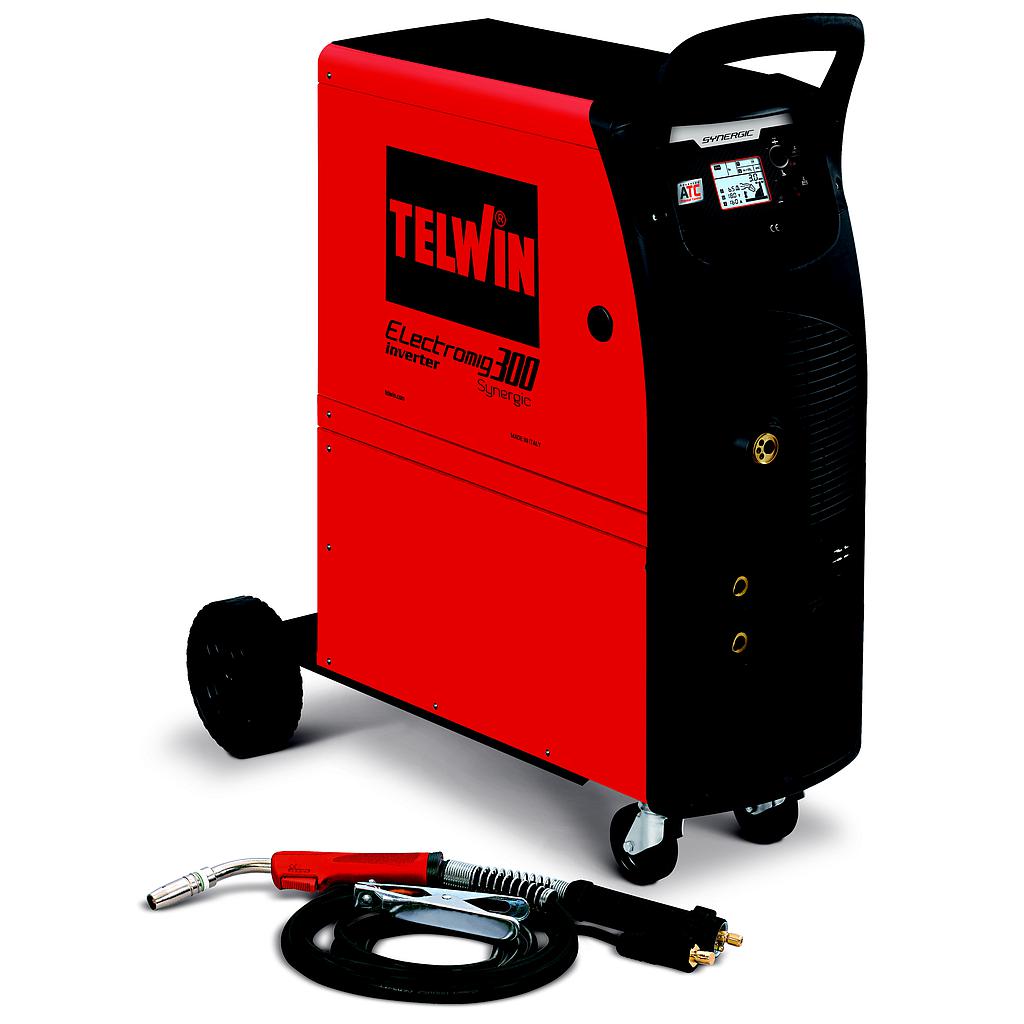

Telwin ELECTROMIG 300 SYNERGIC MIG-MAG 3PH (1,6 - 6 mm)

MAX ABSORBED CURRENT: 15 A

D. USABLE ELECTRODES IN DC: 1,6 - 6 mm

THREE PHASE MAINS VOLTAGE: 400 V

ABSORBED CURRENT AT 60% - MAX 10 A

STEEL WELDING WIRE DIAMETER: 0,6 - 1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 9 kW I

NOX WELDING WIRE DIAMETER: 0,8 - 1,2 mm

CURRENT RANGE: 20 - 300 A

ABSORBED POWER AT 60% 6,5 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8 - 1,2 mm

MAX CURRENT DC (EN 60974-1): 270 @ 30% A

EFFICIENCY: 90 V

FLUX CORED WELDING WIRE DIAM.: 0,8 - 1,2 mm

DC CURRENT: 205 A

POWER FACTOR (cosphi): 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

MAX NO LOAD VOLTAGE: 63 V

Included Accessories

TORCH HOOK - 645704

MT25 MIG TORCH 3M - 742183

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ - 713192

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576
