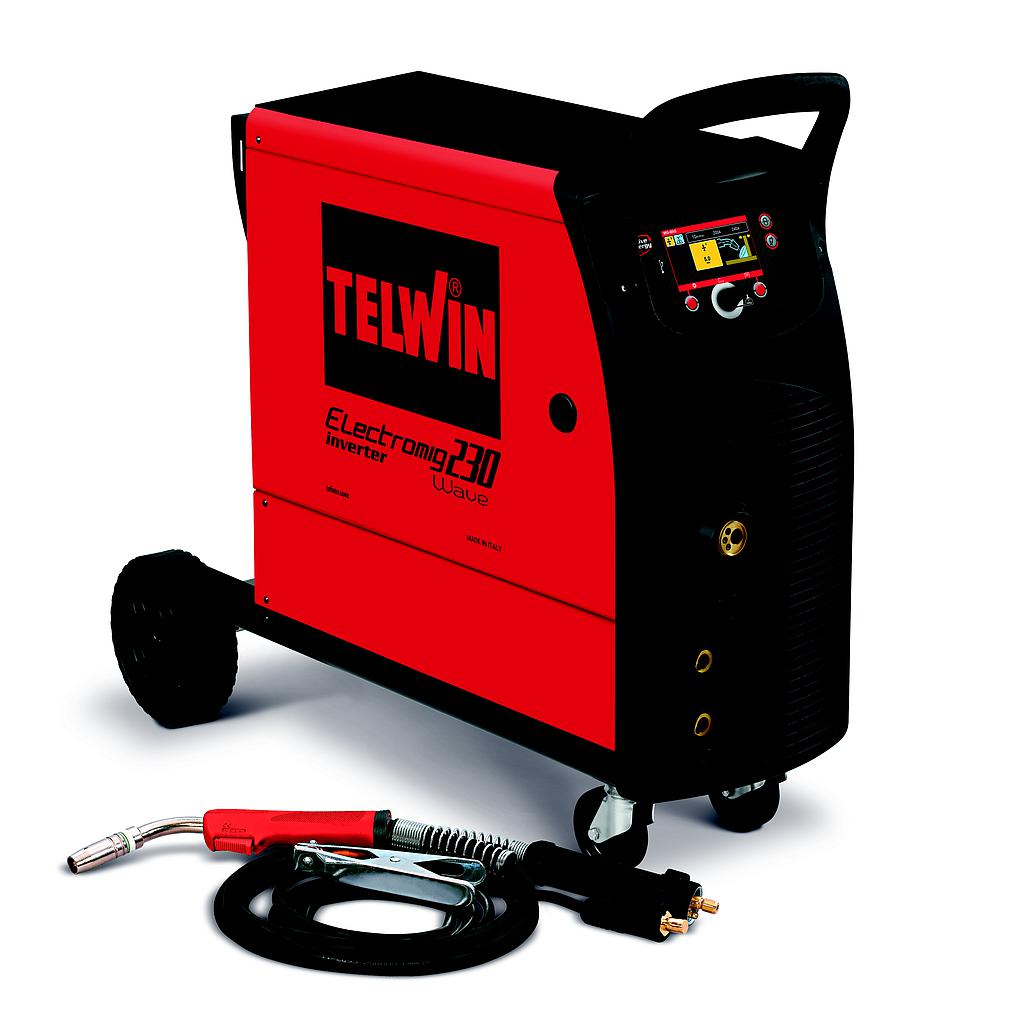

Telwin ELECTROMIG 230 WAVE MIG-MAG 3PH (1,6 - 4mm)

MAX ABSORBED CURRENT: 9 A

POWER FACTOR (cosphi): 0,8

THREE PHASE MAINS VOLTAGE: 400 V

ABSORBED CURRENT AT 60% - MAX 5,5A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 5,5 kW

STEEL WELDING WIRE DIAMETER: 0,6 -1 mm

CURRENT RANGE: 10 - 240 A

ABSORBED POWER AT 60% 3 kW

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

MAX CURRENT DC (EN 60974-1): 200 @20% A

MAINS FUSE: 10 A

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

DC CURRENT: 105 A

EFFICIENCY: 86 V

FLUX CORED WELDING WIRE DIAM.: 0,8 - 1,2 mm

MAX NO LOAD VOLTAGE: 95 V

Included Accessories

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ - 713192

FEED ROLL 2R 0,6FE-0,8FE "F" - 742575
