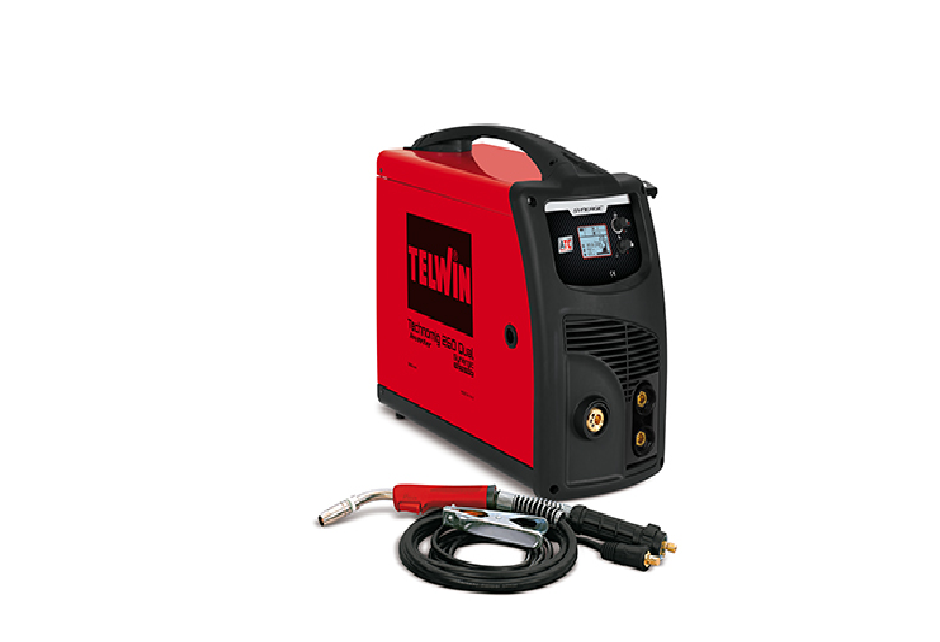

Telwin TECHNOMIG 260 DUAL SYNERGIC MIG-MAG 1PH (1,6 - 4mm)

MAX ABSORBED CURRENT: 39 A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

SINGLE PHASE MAINS VOLTAGE: 230 V

ABSORBED CURRENT AT 60% - MAX 22A

STEEL WELDING WIRE DIAMETER: 0,6 -1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 6,3 kW

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

CURRENT RANGE: 20 - 250 A

ABSORBED POWER AT: 60% 3,3 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAX CURRENT DC (EN 60974-1): 220 @20% A

EFFICIENCY: 87 V

FLUX CORED WELDING WIRE DIAM.: 0,8- 1,2 mm

DC CURRENT: 130 A

POWER FACTOR (cosphi): 0,7

BRAZING WIRE DIAM.: 0,8 - 1 mm

MAX NO LOAD VOLTAGE: 60 V

Accessories

CABLE - 124887 MT25 MIG TORCH 3M - 742183

TOLEDO 300 WORK CLAMP - 712231

FEED ROLL 2R 0,6FE-0,8FE "F" - 742575
