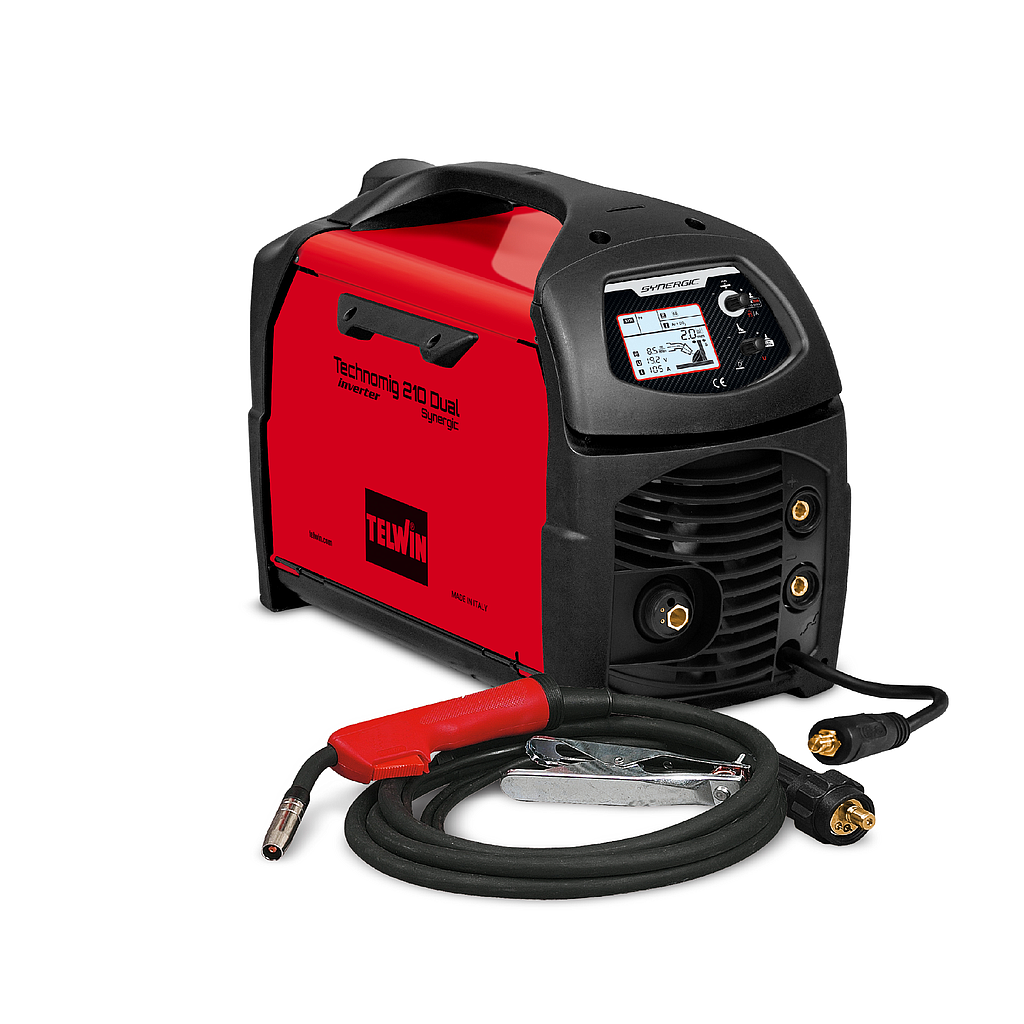

Telwin TECHNOMIG 210 DUAL SYNERGIC MIG-MAG 1PH (1,6 - 3,2mm)

MAX ABSORBED CURRENT: 32 A D.

USABLE ELECTRODES IN DC: 1,6 - 3,2mm

SINGLE PHASE MAINS VOLTAGE: 230 V

ABSORBED CURRENT AT 60% - MAX 15A

STEEL WELDING WIRE DIAMETER: 0,6 -1 mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 5 kW

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

CURRENT RANGE: 20 - 200 A

ABSORBED POWER AT 60% 2,2 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAX CURRENT DC (EN 60974-1): 180 @20% A

EFFICIENCY: 84 V

FLUX CORED WELDING WIRE DIAM.: 0,8- 1,2 mm

DC CURRENT: 100 A

POWER FACTOR (cosphi): 0,7

BRAZING WIRE DIAM.: 0,8 - 1 mm

MAX NO LOAD VOLTAGE: 78 V

Included Accessories

CABLE TW05V-A 1X025 1.80M PLUG ATLAS - 124589

MT15 MIG TORCH 3M (RED) - 742180

TOLEDO 250 WORK CLAMP 250A - 712030
