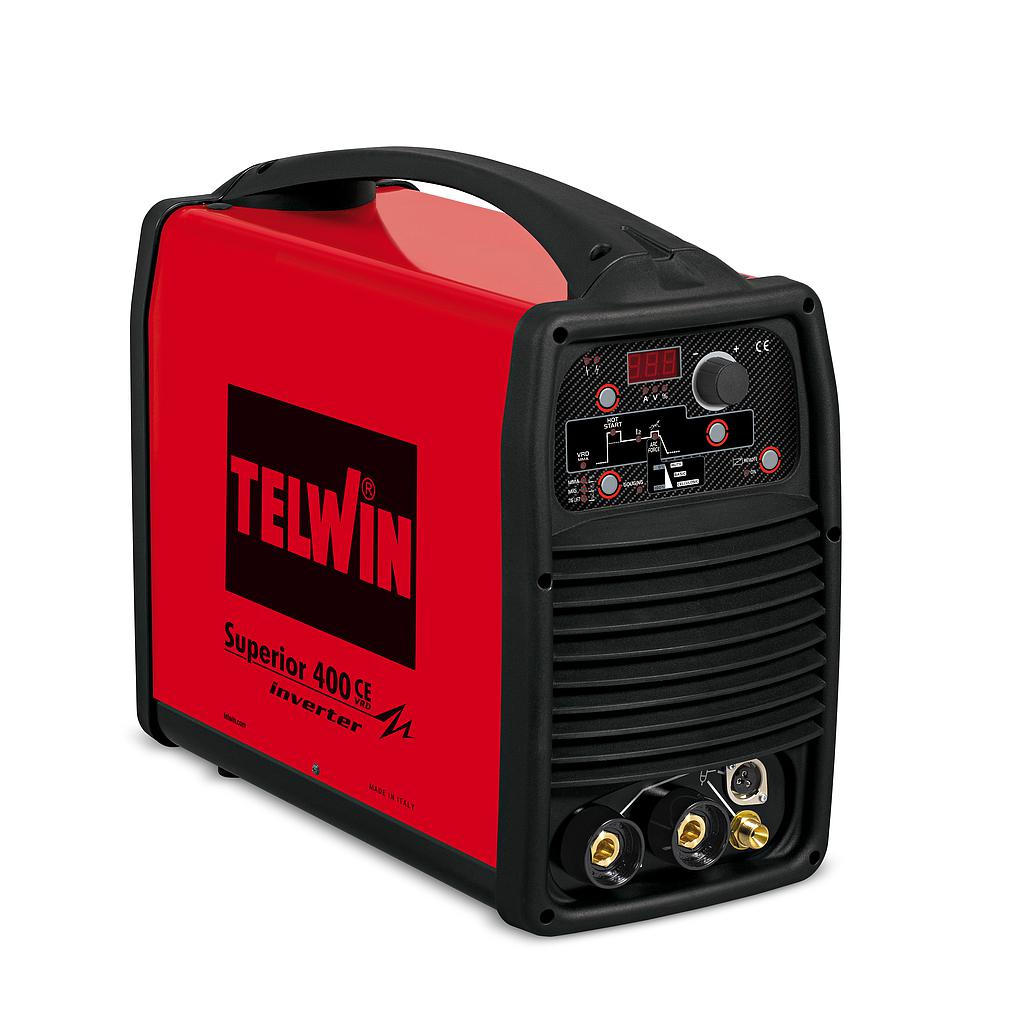

Telwin SUPERIOR 400 CE VRD MMA INVERTER (1,6 - 6mm)

MAX ABSORBED CURRENT: 24 / 20 A

POWER FACTOR (cosphi): 0,9

THREE PHASE MAINS VOLTAGE: 230 /400 V

ABSORBED CURRENT AT 60% - MAX14 / 8,5 A

D. USABLE ELECTRODES IN DC: 1,6 - 6mm

MAINS FREQUENCY: 50 / 60 Hz

MAX ABSORBED POWER: 8 / 14 kW

PROTECTION DEGREE: IP23

CURRENT RANGE: 10 - 300 / 10 - 350 A

ABSORBED POWER AT 60% 5 / 8 kW

DIMENSIONS: 53 x 24 x 45 cm

MAX CURRENT DC (EN 60974-1): 250 @35 % / 330 @ 35% A

MOTORGENERATOR MINIMUM POWER: 12 / 20 kW

WEIGHT: 25 kg

DC CURRENT: 170 / 230 A

EFFICIENCY: 86 V

MAX NO LOAD VOLTAGE: 63 / 62 V
