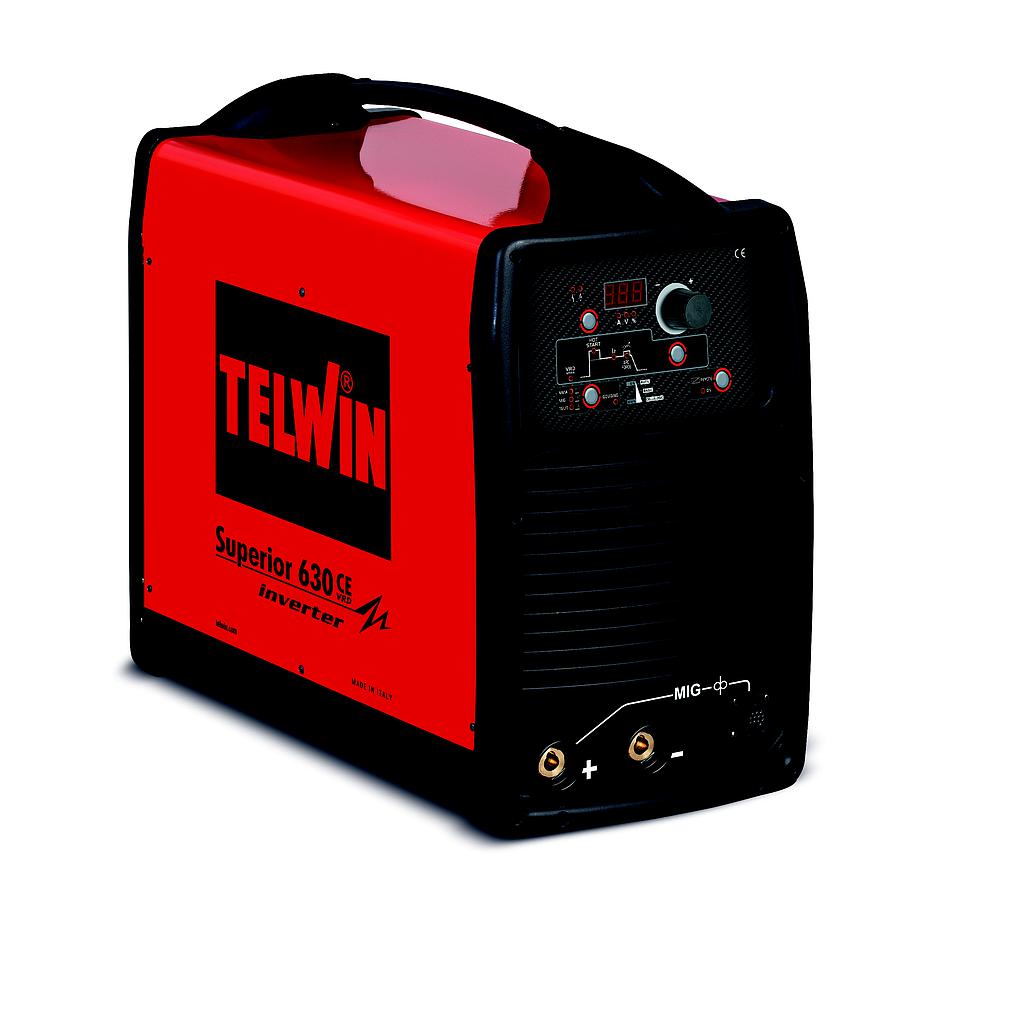

Telwin SUPERIOR 630 CE VRD MMA INVERTER (1,6 - 8 mm)

MAX NO LOAD VOLTAGE: 65 / 73 V

EFFICIENCY: 86 V

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED CURRENT: 44 / 35 A

POWER FACTOR (cosphi): 0,9

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 25 / 20 A

D. USABLE ELECTRODES IN DC: 1,6 - 8 mm

CURRENT RANGE: 10 - 450 / 10 - 600 A

MAX ABSORBED POWER: 16 / 23 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 400 @ 35% / 500 @ 40 % A

ABSORBED POWER AT 60% 10 / 13 kW

DIMENSIONS: 67 x 31 x 56 cm

DC CURRENT: 300 / 400 A

MOTORGENERATOR MINIMUM POWER: 22 / 32 kW

WEIGHT: 43 kg
