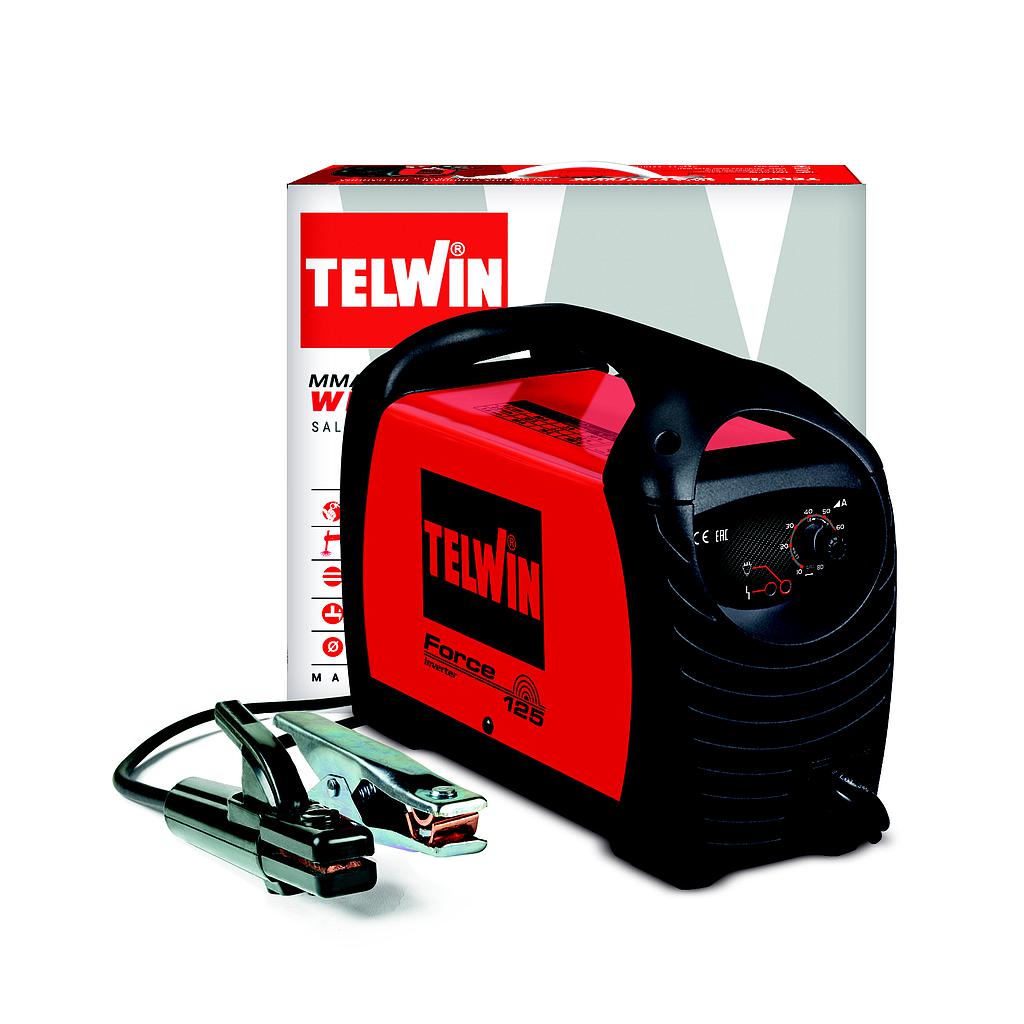

Telwin FORCE 125 MMA INVERTER (1.6mm - 2.5mm)

MAINS FUSE: 10 A

SINGLE PHASE MAINS VOLTAGE: 230V

EFFICIENCY: 82%

MAINS FREQUENCY: 50 / 60 Hz

POWER FACTOR: 0,6

CURRENT RANGE: 10 - 80 A

D. USABLE ELECTRODES IN DC: 1,6 - 2,5 mm

%USE (20°C USE): 50% @ 80A

PROTECTION DEGREE: IP21

MAX CURRENT: 80 @ 5% A

DIMENSIONS: 32 x 37 x 14,5 cm

MAX NO LOAD VOLTAGE: 72 V

WEIGHT: 3,08 kg

MAX ABSORBED CURRENT: 15 A

MAX ABSORBED POWER: 2,3 kW

PIECES/PALLET: 63 pz/pallet

MOTORGENERATOR MINIMUM POWER: 3 kW

PIECES/PALLET - B: 54 pz/pallet B

Included Accessories

SLAG REMOVER - 712139

CABLE 6 MMQ 1.8 M EYELET - 713255

DALLAS 300 ELECTRODE HOLDER 300A - 712260 - 713322
