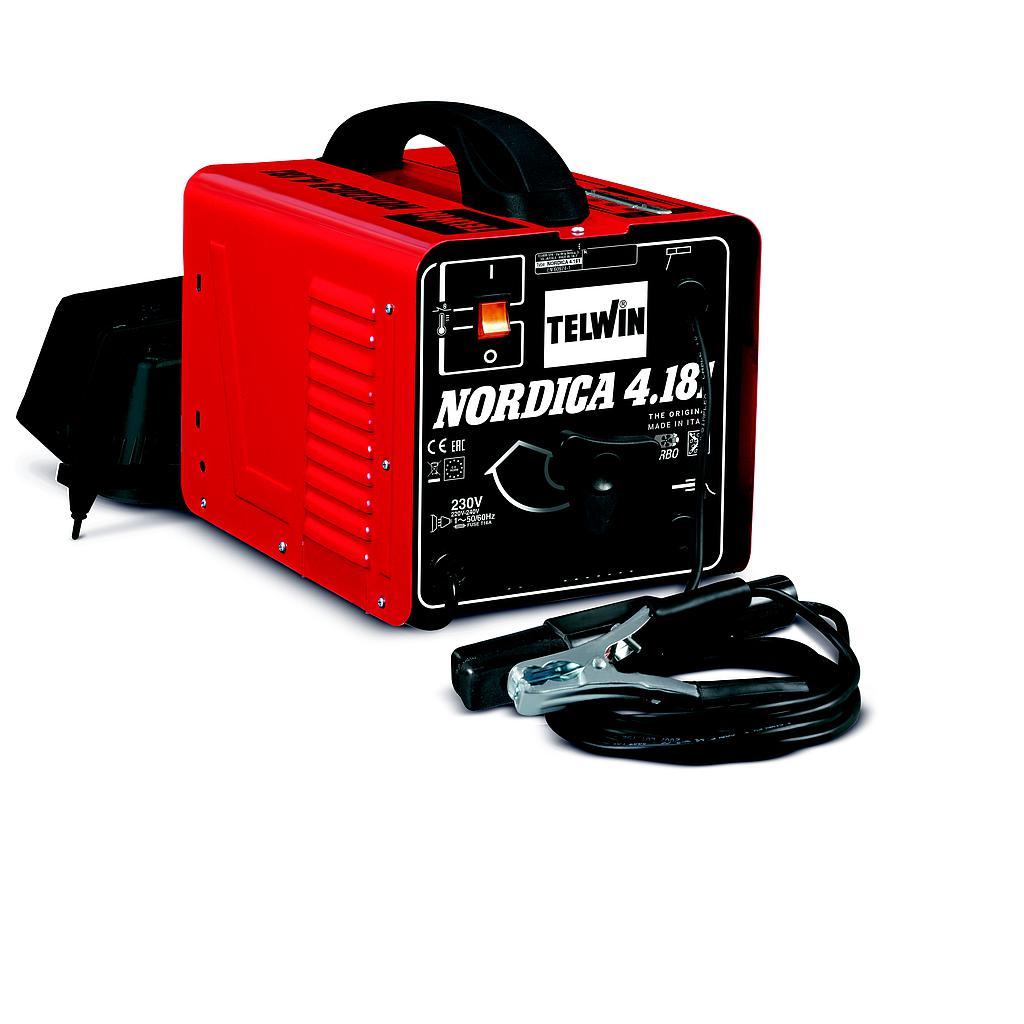

Telwin NORDICA 4.181 TURBO 230V ACD (2 - 4mm)

POWER: 2,5 kW

WEIGHT: 15,7 kg

SINGLE PHASE MAINS VOLTAGE: 230 V

MAINS FUSE: 16 A

MAINS FREQUENCY: 50 / 60 Hz

D. USABLE ELECTRODES IN AC: 2 - 4mm

PIECES/PALLET: 27 pz/pallet

CURRENT RANGE: 50 - 160 A

PROTECTION DEGREE: IP21

PIECES/PALLET - B: 18 pz/pallet-B

MAX NO LOAD VOLTAGE: 49 V

DIMENSIONS: 37 x 25 x 31 cm

Included Accessories

CABLE 16 MMQ 1,8 M - 124502 MASK - 712250

COLORADO 150B WORK CLAMP 150A - 712001

FILTER 51X108 - 712257

SLAG REMOVER - 712139

DALLAS 300 ELECTRODE HOLDER 300A - 712260
