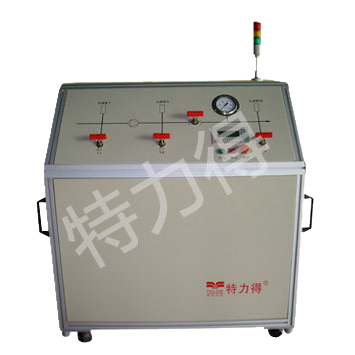

Telide TPU-SW003 Diaphragm Compressor High Pressure Charging Power Unit (20-200bar, 1000/3000bar)

Equipped with NOVA SWISS high pressure diaphragm compressor and related components in the square frame. Sealing with panels in all sides. Rear panel can be disassembled.

Components include: NOVA SWISS high pressure diaphragm compressor, shut-off valve, unloading valve, safety valve, filter, pressure gauge, PLC, and text display, etc.

Medium: inert gases as helium gas and nitrogen gas. Application for the compression of ultra-high pressure, and ultra-pure gases. Fit for gas pressurization, pneumatic sealing test, and gas research. Output pressure can be adjusted.With over-pressure protection and alarm.

Inlet pressure:20-200bar; max. output pressure: 1000bar、3000bar; power supply: as customer required. 2.2kW

Other options: hydrogen gas and oxygen gas as medium available.

Dimensions(L×W×H): 63x 30x49(inch); Weight: 567lbs.
