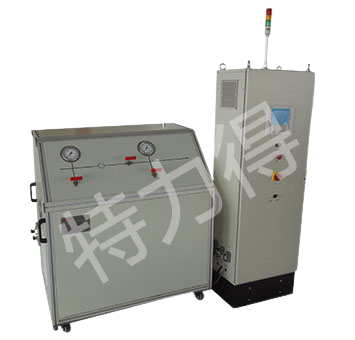

Telide TPU-SW002 Gas Metering Unit for Extrusion Lines (20-200bar, 900/1000bar)
ManufacturerTelide(View more products from this manufacturer)
ModelTPU-SW002
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Dimensions unit (L*H*W): 1150*1250*700(mm)
Weight unit: 300kg
Dimensions cabinet (L*H*W): 600*1900*400(mm)
Intake pressure: 20-200bar
End pressure Max: 900(1000)bar
Guaranteed stability: + -1bar
Pilot pressure safety switch: 20+ -4bar
Power: 380V(3-phase)/50Hz/2.2kw-(Max.4kw).
Medium: (N2/CO2)
Operating temperature: +-10C-+40C
Admissible air humidity: 25%-80%
Emergency stop connections
Monitoring of pilot pressure
Monitoring of malfunction
Monitoring of the diaphragm
