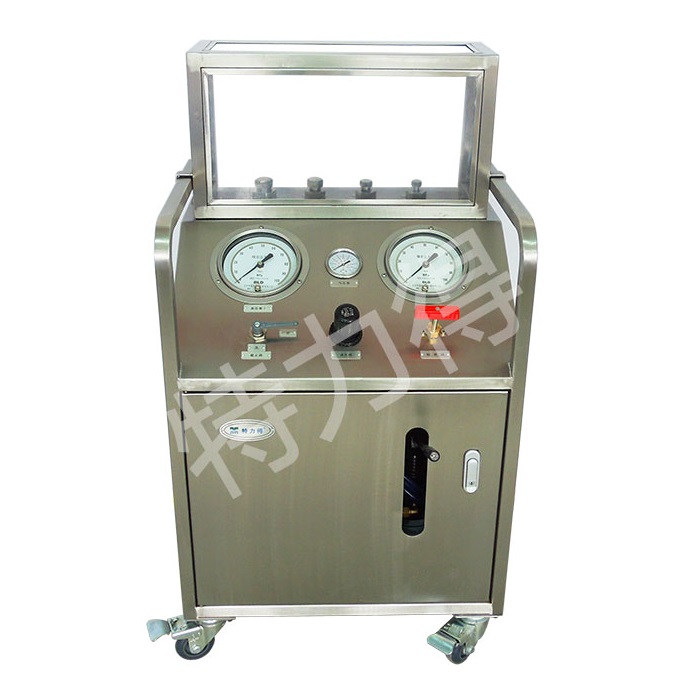

Telide PTP-3S High, Medium and Low Pressure Portable Threaded Safety Valve Test Bench for Liquid (0.69MPa/120MPa)

1. Maximum driving air pressure: 0.69MPa;

Maximum output air pressure: 120MPa (higher pressure is available).

2. Test medium: noncorrosive liquid such as water or oil.

3. High pressure gauge: dual gauges designed with accuracy 0.4%FS, and panel mounting.

4. High pressure outlet: there are 4 interfaces on the top of cabinet and an interface on the bottom of rear.

5. Driving air inlet: 3/8'' PT+Ф10 quick connector;

6. Equipment cabinet: stainless steel. There is a transparent organic glass protective plate on the top to separate 4 high pressure outlets from operation panel.

7. Overall dimensions: L600* W500* H1105 (mm), weight: 55 (kg)
