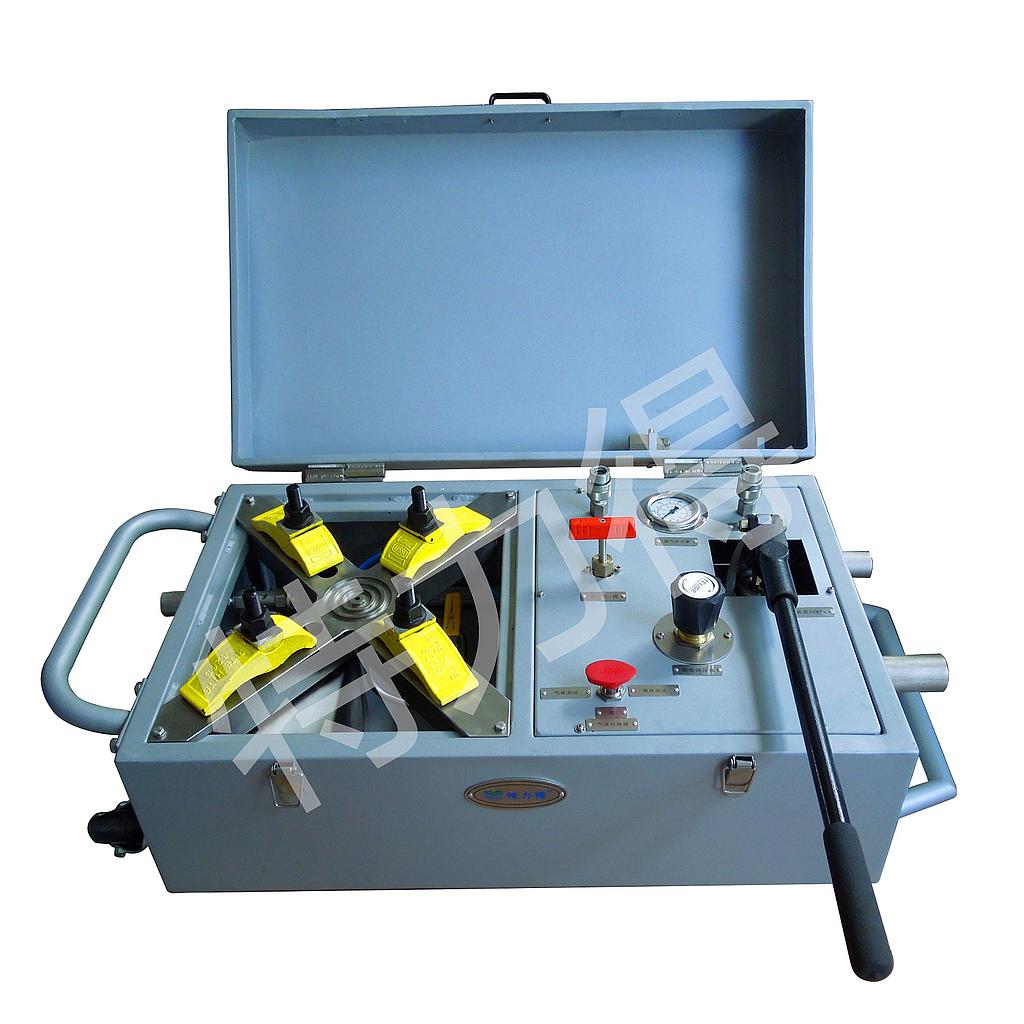

Telide PTP-1L Portable Gas and Liquid Safety Valve Test Bench (15/30MPa)

Max.test pressure:

Gas：15MPa

Liquid： 30MPa

Clamping range: Flanged：DN15-150(1/2”-6”) ; Threaded：DN15-50(1/2”-2”)

Clamping force: 6T，Manual clamping

Test medium: Nitrogen, compressed air ,water

Maximum height under the claws: 60mm

Clampable min. flange outer diameter: 75mm

Clampable max. flange outer diameter: 300mm

Power request: Test gas source: bottled nitrogen（≤15MPa）

Clamping seat: Single seat

Standard Configuration

Nitrogen cylinder hose（L=3m): 1pcs

O-ring for test: 2set

liquid inlet hose and outlet hose（L=5m) : 1pcs of each

Funnel（for adding water to water tank）: 1pcs

Flange-thread transition plate(φ160mm): 1pcs

Tool kit: 1pcs

Threaded safety valve adapter，each 1pcs from DN15-50: Total 6pcs
