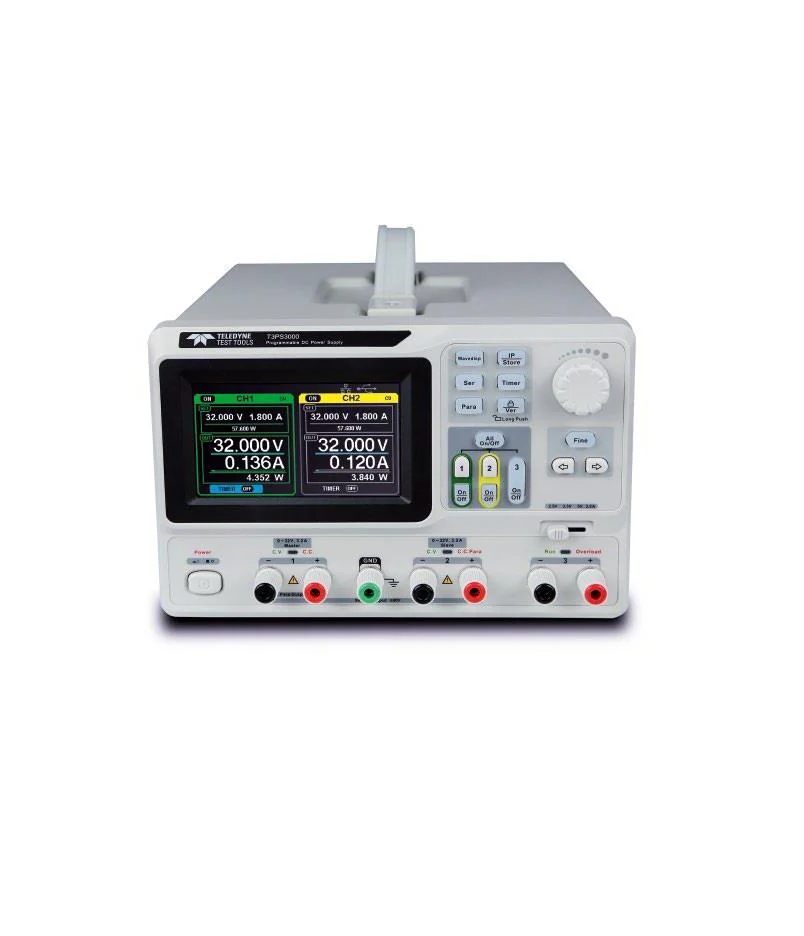

Teledyne Lecroy T3PS3000 Programmable DC Power Supply (32V/3.2A)

Channel

CH1 output voltage: 0 ~ 32 V, output current: 0 ~ 3.2 A

CH2 output voltage: 0 ~ 32 V, output current: 0 ~ 3.2 A

CH3 output voltage: 2.5 / 3.3 / 5.0 V, output current: 3.2 A

Display: 4.3 inch color TFT-LCD, 5 digits voltage 4 digits current

Resolution: 1 mV / 1 mA

Program Accuracy:

Voltage ± (0.03 %of reading + 10 mV)

Current ± (0.3 %of reading + 10 mA)

Readback Accuracy:

Voltage ± (0.03 %of reading + 10 mV)

Current Current ± (0.3 %of reading +10 mA)

Constant Voltage Mode

Line Regulation: ≤ 0.01%+ 3 mV

Load Regulation: ≤ 0.01%+ 3 mV

Ripple & Noise: ≤ 1 mVrms (5 Hz ~ 1 MHz)

Recovery Time: < 50 μs (50 %load change, minimum load 0.5 A)

Constant Current Mode

Line Regulation: ≤ 0.2 %+ 3 mA

Load Regulation: ≤ 0.2 %+ 3 mA

Ripple & Noise: ≤ 3 mArms

Parallel Mode

Line Regulation: ≤ 0.01%+ 3 mV

Load Regulation: ≤ 0.01%+ 3 mV

Series Mode

Line Regulation: ≤ 0.01%+ 5 mV

Load Regulation: ≤ 300 mV

CH3

Output Voltage: (2.5 / 3.3 / 5 V) ± 8 %

Line Regulation: ≤ 0.01%+ 3 mV

Load Regulation: ≤ 0.01%+ 3 mV

Ripple & Noise: ≤ 1 mVrms (5 Hz ~ 1 MHz)

Locking Key: Yes

Memory Save / Recall: 5 Sets

Max Output Power: 220 W

Power Source: AC 100 V / 120 V / 220 V / 230 V ± 10% 50/60 Hz

Standard Configuration: Interface USB Device, LAN

Insulation:

Case to Terminal ≥ 20 MΩ (DC 500 V)

Case to AC line ≥ 30 MΩ (DC 500 V)

Environmental

Operating Temperature: 0 °C to +40 °C

Storage Temperature: -10 °C to +70 °C

Humidity: 5% to 90% relative humidity (non-condensing) up to +30 °C.

Upper limit derates to 50% relative humidity (non-condensing) at +40 °C

Operating Altitude: 2000 m (Max)

Indoor Use only

Pollution Degree 2 (per IEC61010-1:2010)

Dimension: 225 (W) × 143 (H) × 278 (D) mm

Weight: ≈ 8.0 kg
