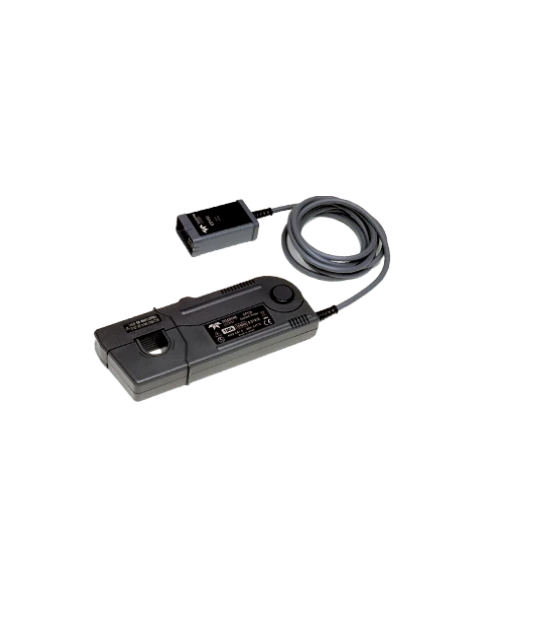

Teledyne Lecroy CP150B Current Probe (150 A, 10 MHz)

Bandwidth (Probe Only): 10 MHz

Coupling: AC 1 MΩ, DC 1MΩ, GND

Risetime (typical): 35 ns

Max Continuous Input Current: 150 A

Max Peak Current (non-continous): 300 A

Minimum Sensitivity: 100 mA/div

Amplitude Accuracy:

±1.0 % of reading ±100 mA to 150A

±2.0% of reading to 300A

Maximum Circuit Voltage:

600 V CAT II

300 V CAT III (insulated conductor)

Environmental and Safety

Operating Temperature: 0 °C to 40 °C

Humidity: ≤ 80 % relative humidity (non-condensing)

Storage Temperature: -10 °C to 50 °C

Max Altitude: 2000 m

Physical Dimensions

Probe Head Dimensions (L x W x H): 175 mm x 27 mm x 69 mm

Cable Length: 2 m

Maximum Conductor Size: 20 mm

Weight: 500 g

General Characteristics

Interface: ProBus
