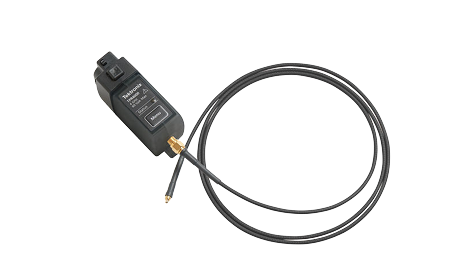

TEKTRONIX TPR1000 Active Power Rail Probes (C3+R3)

Bandwidth: 1 GHz

Offset voltage range: ±60 V

Dynamic range: ±1 V

Input resistance: 50 kΩ DC 50 Ω AC

Input coupling: DC, LF reject

Accuracy: 1 mV

System noise:

<300 μVP-P (with 20 MHz bandwidth limit)

<1.3 mVP-P (at full bandwidth of oscilloscope)

Using 6 Series MSO oscilloscopes. With grounded input and maximum sensitivity set to 1.3 mV/Div.

Attenuation: 1.25x

Frequency response optimized for <1 Ω source impedance.

Connectivity and accessories: New browser, solder-in and snap-on
