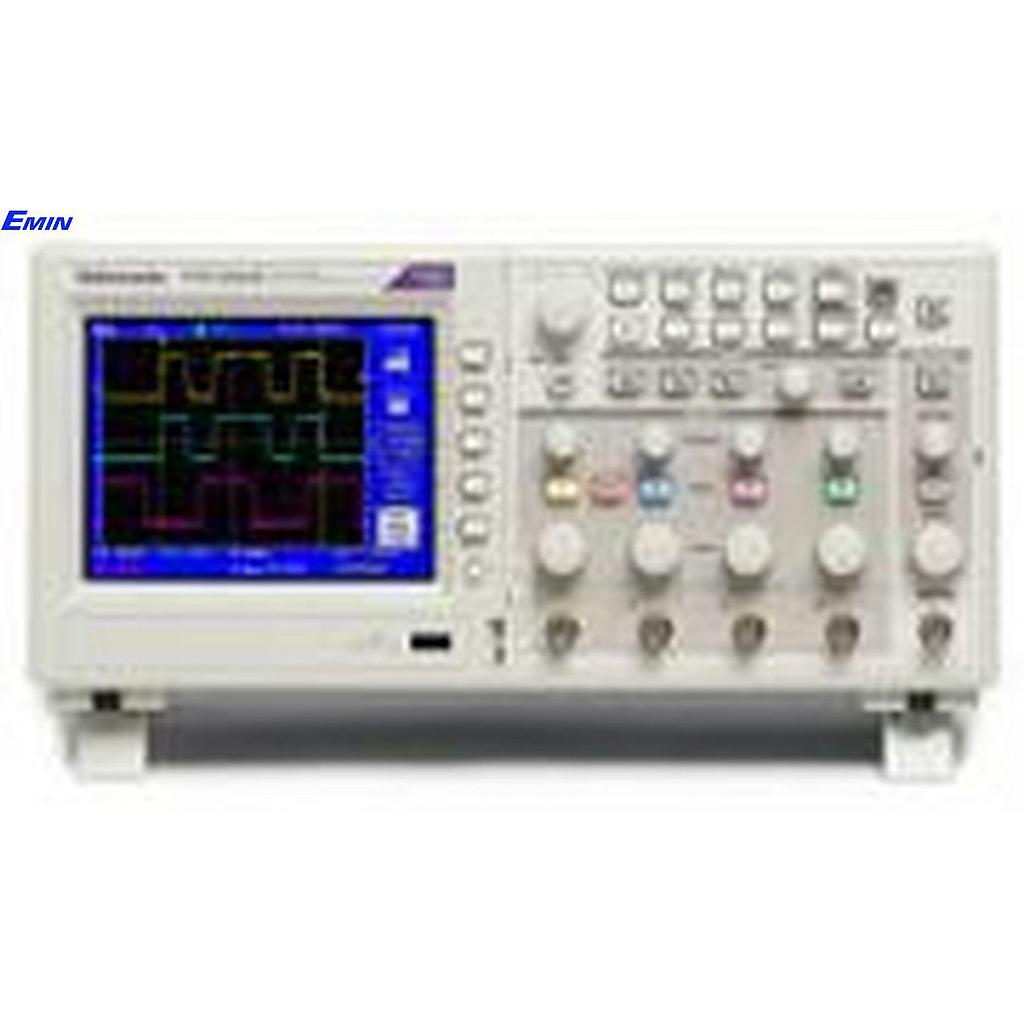

TEKTRONIX TDS2004 Digital Storage Oscilloscope (70Mhz, 2Channels)
Manufacturer:Tektronix-USA
Key Performance Specifications
- 70 MHz Bandwidth Models
- 4-channel Models
- 1GS/s Sample Rate on All Channels
- 2.5k point Record Length on All Channels
- Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger
Ease-of-Use Features
- 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
- Built-in Waveform Limit Testing
- Automated, Extended Data Logging Feature
- Autoset and Signal Auto-ranging
- Built-in Context-sensitive Help
- Probe Check Wizard
- Multiple-language User Interface
- 5.7 in. (144 mm) Active TFT Color Display
- Small Footprint and Lightweight – Only 4.9 in. (124 mm) Deep and 4.4 lb. (2 kg)
Connectivity
- USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
- USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
- Includes National Instrument’s LabVIEW SignalExpress™ TE Limited Edition and Tektronix OpenChoice® Software for Connecting Your Bench
Characteristics
TDS2000C Series Digital Storage Oscilloscopes
|
|
TDS2001C |
TDS2002C |
TDS2004C |
TDS2012C |
TDS2014C |
TDS2022C |
TDS2024C |
|---|---|---|---|---|---|---|---|
|
Display (QVGA LCD) |
TFT |
TFT |
TFT |
TFT |
TFT |
TFT |
TFT |
|
Bandwidth*3 |
50 MHz |
70 MHz |
70 MHz |
100 MHz |
100 MHz |
200 MHz |
200 MHz |
|
Channels |
2 |
2 |
4 |
2 |
4 |
2 |
4 |
|
External Trigger Input |
Included on all models |
||||||
|
Sample Rate on Each Channel |
500 MS/s |
1.0 GS/s |
1.0 GS/s |
2.0 GS/s |
2.0 GS/s |
2.0 GS/s |
2.0 GS/s |
|
Record Length |
2.5k points at all time bases on all models |
||||||
|
Vertical Resolution |
8 bits |
||||||
|
Vertical Sensitivity |
2 mV to 5 V/div on all models with calibrated fine adjustment |
||||||
|
DC Vertical Accuracy |
±3% on all models |
||||||
|
Vertical Zoom |
Vertically expand or compress a live or stopped waveform |
||||||
|
Maximum Input Voltage |
300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz |
||||||
|
Position Range |
2 mV to 200 mV/div +2 V >200 mV to 5 V/div +50 V |
||||||
|
Bandwidth Limit |
20 MHz for all models |
||||||
|
Input Coupling |
AC, DC, GND on all models |
||||||
|
Input Impedance |
1 MΩ in parallel with 20 pF |
||||||
|
Time Base Range |
5 ns to 50 s/div |
5 ns to 50 s/div |
5 ns to 50 s/div |
2.5 ns to 50 s/div |
2.5 ns to 50 s/div |
2.5 ns to 50 s/div |
2.5 ns to 50 s/div |
|
Time Base Accuracy |
50 ppm |
||||||
|
Horizontal Zoom |
Horizontally expand or compress a live or stopped waveform |
||||||
|
I/O Interfaces |
|||||||
|
USB Ports |
USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers |
||||||
|
GPIB |
Optional |
||||||
|
Nonvolatile Storage |
|||||||
|
Reference Waveform Display |
(2) 2.5k point reference waveforms |
||||||
|
Waveform Storage without USB Flash Drive |
(2) 2.5k point |
(2) 2.5k point |
(4) 2.5k point |
(2) 2.5k point |
(4) 2.5k point |
(2) 2.5k point |
(4) 2.5k point |
|
Maximum USB Flash Drive Size |
64 GB |
||||||
|
Waveform Storage with USB Flash Drive |
96 or more reference waveforms per 8 MB |
||||||
|
Setups without USB Flash Drive |
10 front-panel setups |
||||||
|
Setups with USB Flash Drive |
4000 or more front-panel setups per 8 MB |
||||||
|
Screen Images with USB Flash Drive |
128 or more screen images per 8 MB (the number of images depends on file format selected) |
||||||
|
Save All with USB Flash Drive |
12 or more Save All operations per 8 MB A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform) |
||||||
