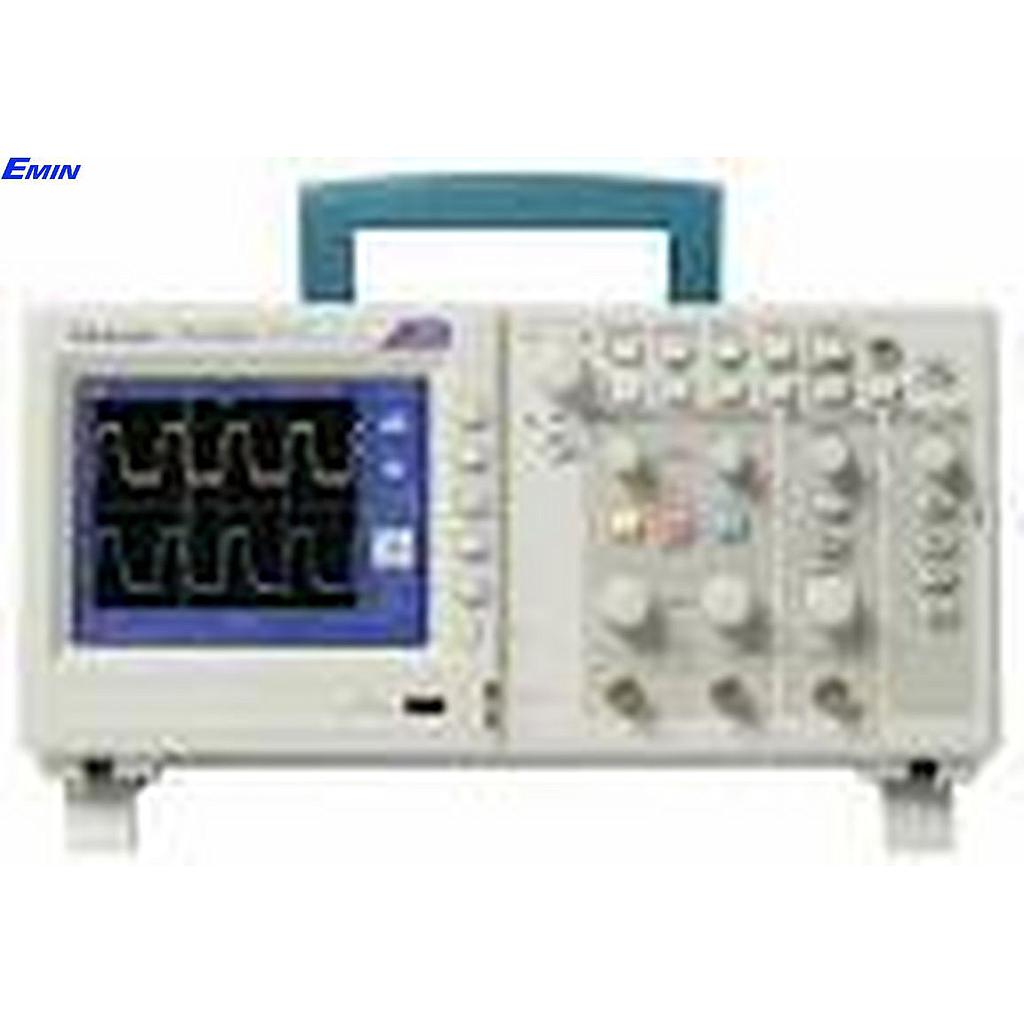

Tektronix TDS2002C Digital Storage Oscilloscope (70MHz, 2channels)

Manufacturer:Tektronix-USA

Key Performance Specifications

• 70 MHz Bandwidth Models
• 2-channel Models
• 1GS/s Sample Rate on All Channels
• 2.5k point Record Length on All Channels
• Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger

Ease-of-Use Features

• 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
• Built-in Waveform Limit Testing
• Automated, Extended Data Logging Feature
• Autoset and Signal Auto-ranging
• Built-in Context-sensitive Help
• Probe Check Wizard
• Multiple-language User Interface
• 5.7 in. (144 mm) Active TFT Color Display
• Small Footprint and Lightweight – Only 4.9 in. (124 mm) Deep and 4.4 lb. (2 kg)

Connectivity

• USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
• USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge^®-compatible Printer
• Includes National Instrument’s LabVIEW SignalExpress™ TE Limited Edition and Tektronix OpenChoice^® Software for Connecting Your Bench
