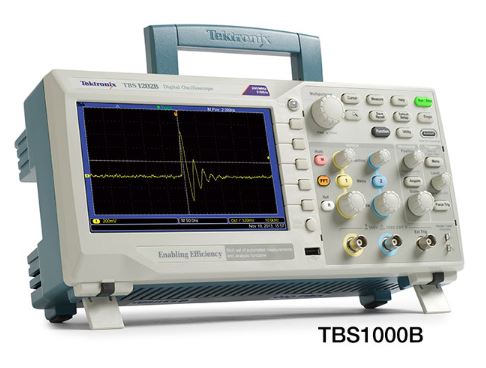

TEKTRONIX TBS1202B Digital Oscilloscop (200Mhz, 2 kênh, 2GS/s)

Accessories: 10x passive probe, Power cord, user manual, Documentation CD

Analog channels: 2
Bandwidth: 200Mhz
Sample rate: 2 GS/s
Record length: 2.5k
VERTICAL SYSTEM ANALOG CHANNELS
Bandwidth limited: 20 MHz
Input coupling: AC, DC, GND
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range: 1 MΩ
Maximum input voltage 300 VRMS CAT II; derated at 20
Vertical resolution: 8 bit
Accuracy: ±3%
Offset Range: 2 mV/div ~ 5 V/div
HORIZONTAL SYSTEM ANALOG CHANNELS
Time base range: 2.5ns ~50s/ div
Time base accuracy: ±50 ppm
TRIGGER
Trigger modes Auto, Normal, and Single
Trigger Source: CH1, CH2, Ext, Ext/5, AC Line
Trigger types: Edge, PWM, Video
WAVEFORM MATH
Arithmetic: Add, subtract, multiply, FFT

FREQUENCY COUNTER
Resolution 6 digits
Accuracy (typical) + 51 parts per million including all frequency reference errors and +1 count errors
Frequency range AC coupled, 10 Hz minimum to rated bandwidth

DISPLAY SYSTEM
Display type: 7 inch
Display format: YT, XY
Input/ output Port: USB
POWER SOURCE
Power source:100 ~ 240 V ±10%, 50/60 Hz
Dimensions: 158.0 mm x 326.3 mm x 124.2 mm
Weight: 2Kg
