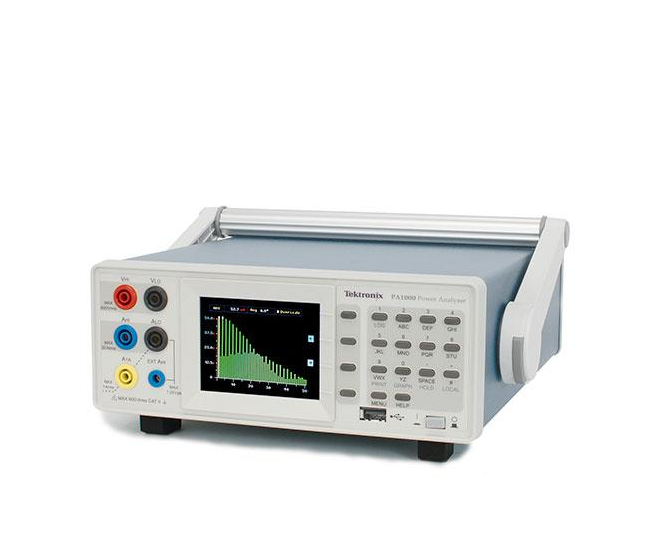

Tektronix PA1000 Power Analyzer

Voltage ranges: 1000 Vp, 500 Vp, 200 Vp 100 Vp, 50 Vp, 20 Vp, 10 Vp
Current ranges (20 A shunt): 100 Ap, 50 Ap, 20 Ap, 10 Ap, 5 Ap, 2 Ap, 1 Ap, 0.5 Ap, 0.2 Ap, 0.1 Ap
Current ranges (1 A shunt): 2.0 Ap, 1.0 Ap, 0.4 Ap, 0.2 Ap, 0.1 Ap, 0.04 Ap, 0.02 Ap, 0.01 Ap, 0.004 Ap, 0.002 Ap
Measurement accuracy - voltage (45 Hz to 850 Hz) : ± 0.05% of Reading ± 0.05% of Range ± 0.05 V
Measurement accuracy - current (45 Hz to 850 Hz) : ± 0.05% of Reading ± 0.05% of Range ± (50 µV/Zext)
Measurement accuracy - power:
Watts accuracy : ± 0.075% of Reading ± 0.075% of Range (PF=1)
VA accuracy: ± 0.075% of Reading ± 0.075% of Range
PF Accuracy: Cos θ -cos [ θ± ( Vh1 ph.err± Ah1 ph.err)] ± 0.002
Measurement accuracy - harmonic magnitude and phase (typical) (10 Hz to 1 MHz): ± 0.02% of Reading ± 0.1% of Range ± (0.04*F)% of Reading ± 0.05 V
Dimensions: 102 x 223 x 285 mm
Weight: 3,2kg
Include: Voltage lead, Power Cord, USB host-to-device interface cable, Documentation CD, Certificate of calibration
