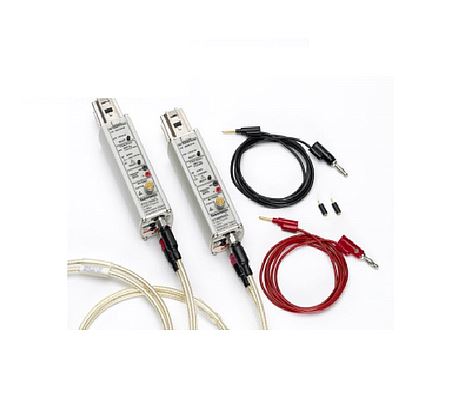

TEKTRONIX P7313SMA Probe (13GHz)

All specifications are guaranteed unless noted otherwise.
Bandwidth, typical >13.0 GHz (16 GHz with DSP filtering)
Rise time
10 to 90% <40 ps="" br=""> 10 to 80%, typical <25 ps="" br=""> Attenuation 2.5X or 12.5X, user selectable
Differential input range 0.800 Vp-p (2.5X)
3.6 Vp-p (12.5X)
Common Mode input range +3.6/-2.5 V
Termination voltage range +3.6/-2.5 V
Noise, referred to input <13 nv="" hz="" 2="" 5x="" br=""> <40 nv="" hz="" 12="" 5x="" br=""> Differential return loss <30 db="" to="" 500="" mhz="" vswr="" 1="" 065:1="" br=""> <20 db="" to="" 6="" 5="" ghz="" vswr="" 1="" 22:1="" br=""> <15 db="" to="" 10="" ghz="" vswr="" 1="" 43:1="" br=""> <12 db="" to="" 13="" ghz="" vswr="" 1="" 67:1="" br=""> CMRR >50 dB to 1 GHz
>35 dB to 2.5 GHz
>25 dB to 5 GHz
>20 dB to 10 GHz
>15 dB to 13 GHz
Maximum voltage (non
destructive)
±5 V (DC + peak AC)
Interface TekConnect®

Datasheet

Manual
