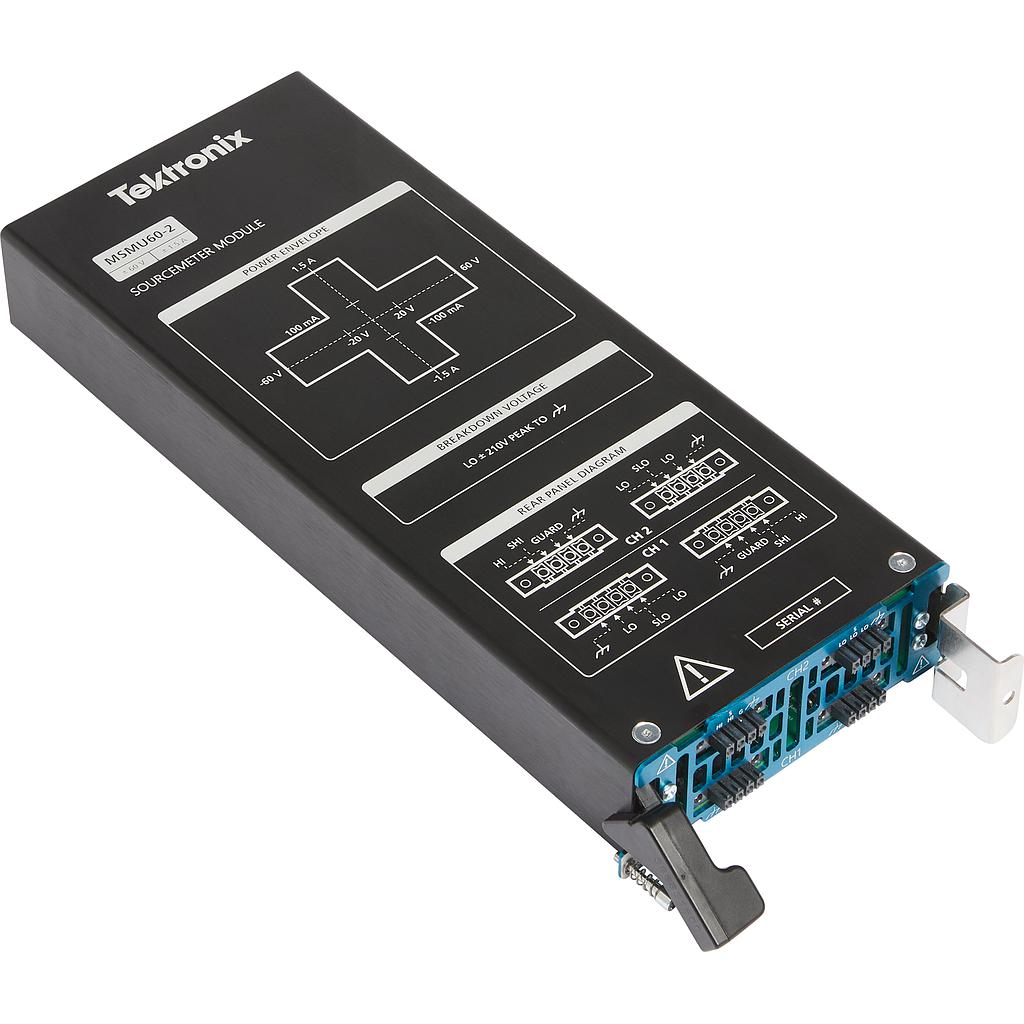

TEKTRONIX MSMU60-2 SMU Module (30 W, 60 V, 1.5 A, 2 CH)

Use with MP5000 Series mainframe - mainframe sold separately and required

2 SMU channels per module, 6 channels per mainframe

Up to 60V and up to 1.5 A per channel

Offers 4-quadrant voltage/current source and measure for each channel with 6½-digit measure resolution down to 100 femtoamps

Integrated 1 MSa/s ADCs for both voltage and current measurements using fast sample rates

Up to 6 V between force and sense allowing users more flexibility in cabling and test setup

User selectable auto-sense resistor prevents excessive voltage at Force Hi if there are contact errors

Asymmetric Compliance: Configure independent positive and negative limit values
