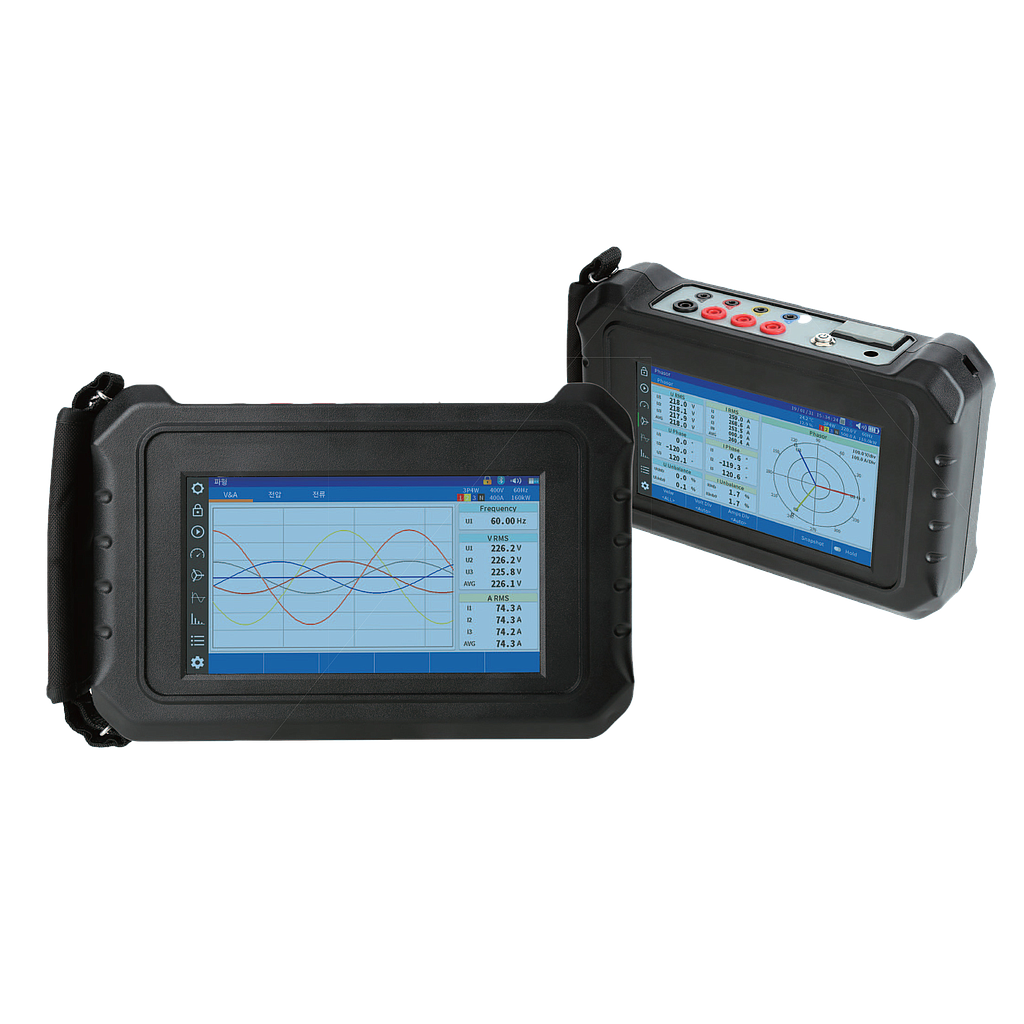

TEKON 570 Power Quality Analyzer

Measuring the quality of power and electrical parameters at the same time

Displaying how to conduct wiring and measurements on the touchscreen

7" wide LCD making easier measurements and analyses

Proving touch functions in order for the user to search/ archive menus via intuitive UI

Enabling the user to download, view and analyze stored data, and makeup reports

Providing flexible coil clamp (Rogowski coil) as basic current sensor

Captures three-phase power quality measurements

Simultaneously measures active/ reactive/ apparent power, power factor, RMS voltage/ current, phase angle and neutral line current

Supports a variety of wiring such as single-phase 2-wire, single-phase 3-wire, three-phase 3 wire and three-phase 4-wire

Displays voltage and current in waveforms and phase diagram

EN50 160 report output

Environment temperature and humidity measurement

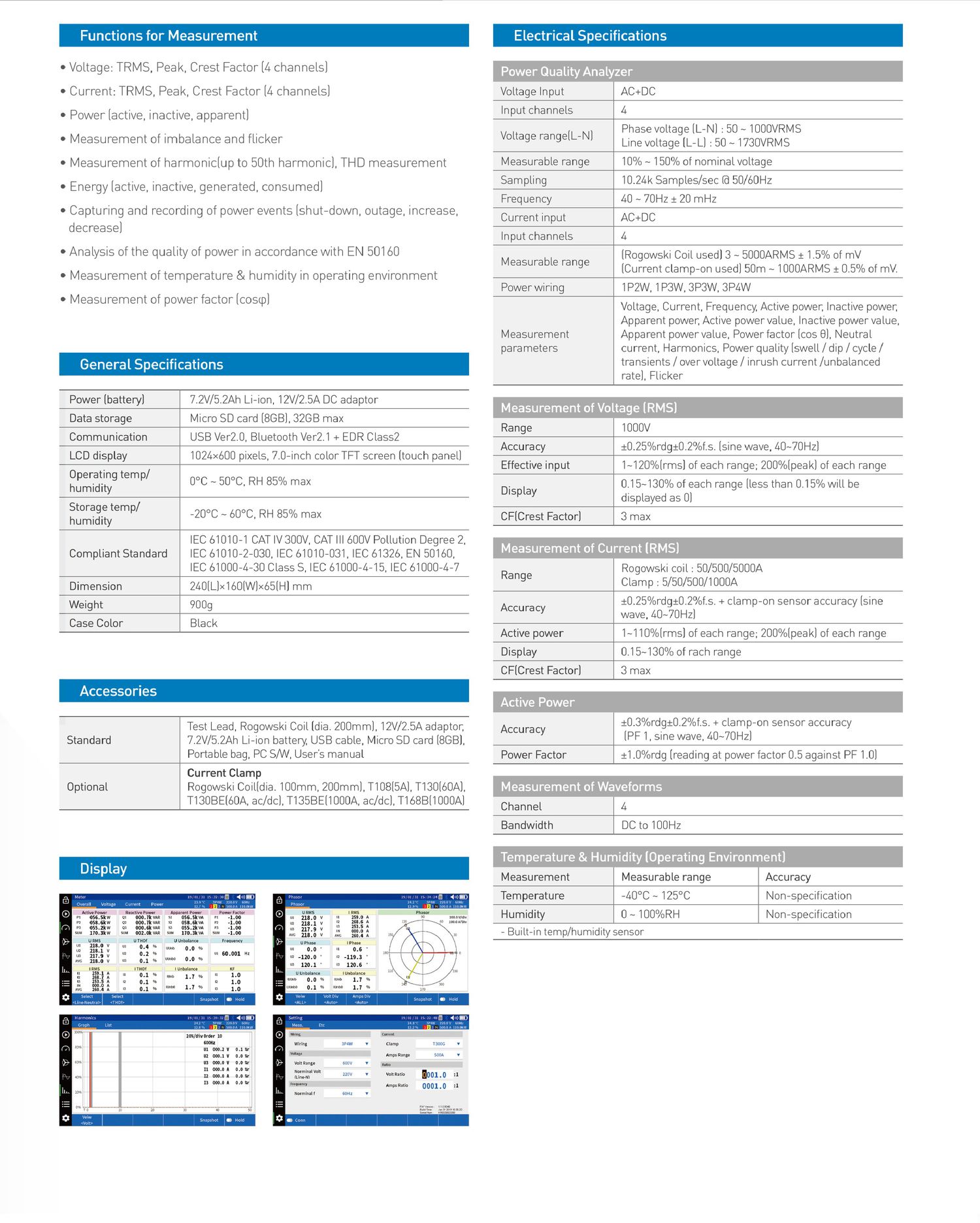

Details
