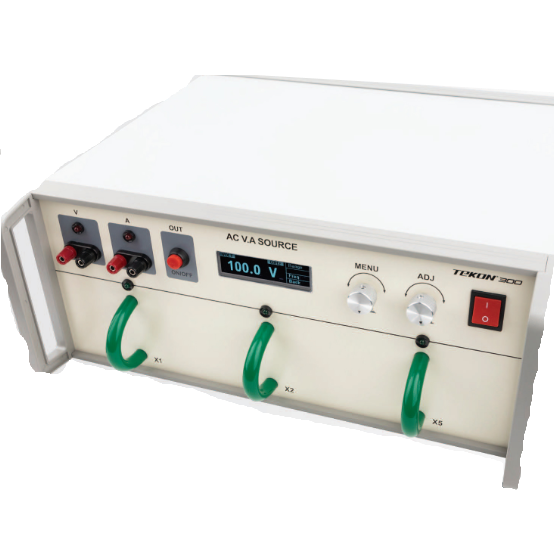

TEKON 300 AC Voltage, Current Generator

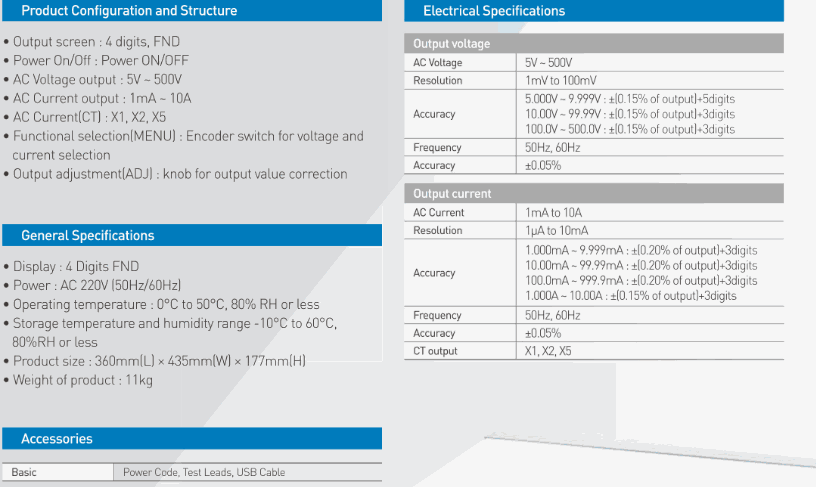

Product configuration and structure

Output screen: 4 digits, FND

Power On/Off: Power ON/OFF

AC Voltage output: 5V-500V

AC Current output: 1mA - 104

AC Current CTI: X1, X2, X5

Functional selection MENUI: Encoder switch for voltage and current selection

Output adjustment(ADJ): knob for output value correction

General Specifications

Display : 4 Digits FND

Power: AC 220V (50Hz/60Hzl

Operating temperature 0°C to 50°C, 80% RH or less

Storage temperature and humidity range -10°C to 60°C. 80%RH or less

Product size: 360mm(L) x 435mm(W) x 177mm(H)

Weight of product: 11kg
