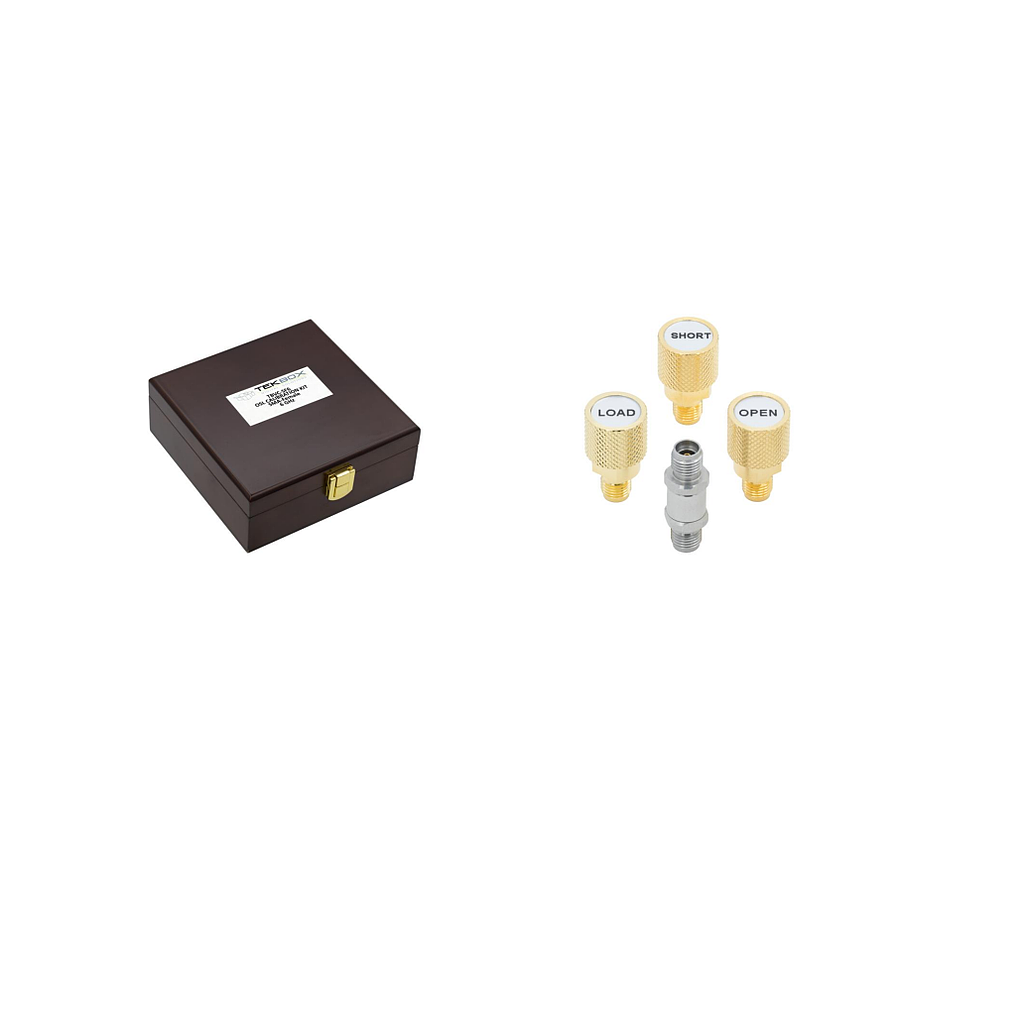

Tekbox TBVC-SM6 VNA Calibration Kit SMA Female (3.5mm; 6 GHz)

LOAD

Connector: 3.5 mm Male

Impedance: 50 Ω

Return loss: > 30 dB

THROUGH

Connector: 3.5 mm Male

Impedance: 50 Ω

Loss: 6.3 GΩ/s

Delay: 75.345 ps

SHORT

Connector: 3.5 mm Male

Impedance: 50 Ω

Delay: 46.544 ps

Loss: 6.18 GΩ/s

L0: 1.84 pH

L1: –3.0297e-21 H/Hz

L2: –3.123e-31 H/Hz²

L3: –5.38e-42 H/Hz³

OPEN

Connector: 3.5 mm Male

Impedance: 50 Ω

Delay: 46.485 ps

Loss: 8.46 GΩ/s

C0: –6.03 fF

C1: 5.16e-25 F/Hz

C2: 4.13e-35 F/Hz²

C3: 3.36e-45 F/Hz³

Frequency range: DC – 6 GHz

Box dimensions: 145 mm × 145 mm × 55 mm

Weight: 340 g
