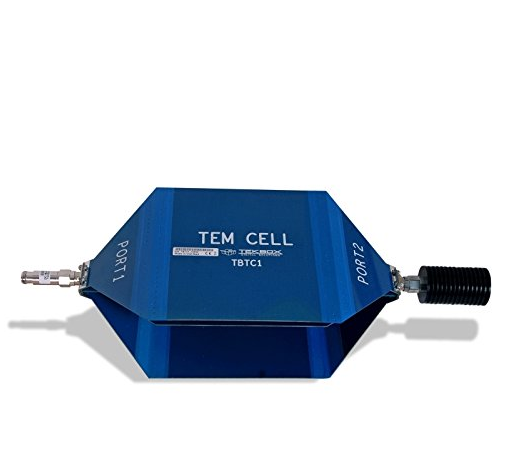

Tekbox TBTC1 Open TEM Cell for EMC Pre-Compliance Testing

Manufacturer: Tekbox

Model: TBTC1

Warranty: 12 months

TEM cell dimensions:

Length: 390 mm

Width: 200 mm

Height: 108 mm

Septum height: 50 mm

Rectangular area under the septum: 19 cm x 13 cm x 5 cm

TEM cell connectors: N-female

Nominal cell impedance: 50 Ohm

Wave impedance: 377 Ohm

Maximum RF input power: 25W (limited by supplied 50 Termination)

Input return loss: S11 up to 1.2 GHz < -20dB, up to 2.1 GHz < -17dB, up to 3GHz < -14

Transmission loss: up to 1.4 GHz < 1 dB, up to 2.1 GHz < 3dB, up to 3 GHz < 6dB

Manual
