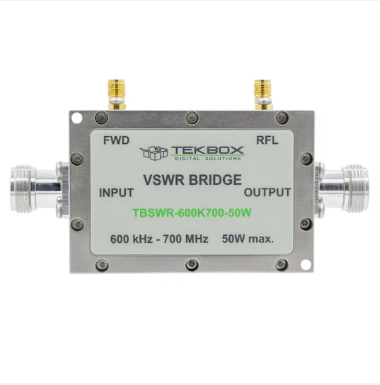

Tekbox TBSWR-600K700 High Power VSWR Bridge (50 Ω, 200 kHz – 700 MHz)

Characterized frequency range: 200 kHz – 700 MHz

Directivity:

600 kHz – 700 MHz > 20 dB

10 MHz – 500 MHz > 30 dB

Coupling: 300 kHz – 700 MHz -30 dB ± 0.5 dB

Insertion loss:

200 kHz – 100 MHz < 0.7 dB

100 MHz – 700 MHz < 1.5 dB

Max. power:

200 kHz – 200 MHz 50 W CW *)

200 MHz – 700 MHz 40 W CW *)

*) Output shorted or open: max. 12.5 W

Operating temperature range: - 20 °C to + 40 °C

Impedance: 50 Ω

Port matching: > 20 dB

RF connectors, through ports: N-female

RF connectors, coupling ports: SMA-female

Dimensions: 113 mm x 60 mm x 35 mm

Weight: 290 g
