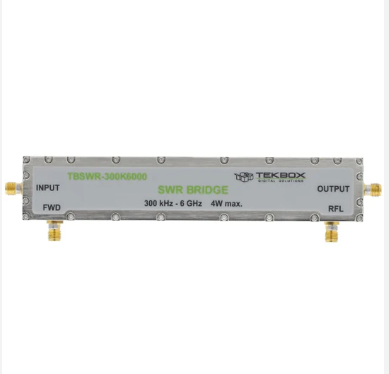

Tekbox TBSWR-300K6000 High Power VSWR Bridge (50 Ω, 300 kHz – 6 GHz)

Characterized frequency range: 300 kHz – 6 GHz

Directivity:

300 kHz – 700 kHz    > 25 dB

700 kHz – 4 GHz    > 30 dB

4 GHz – 6 GHz    > 20 dB

Coupling:

300 kHz – 3 GHz    -20 dB ± 1 dB

3 GHz – 6 GHz    -19 dB ...-16 dB

Insertion loss:

300 kHz – 1 GHz    < 1.8 dB

1 GHz – 6 GHz    < 2.6 dB

Max. power:

300 kHz – 6 GHz    4 W CW *)

*) Output shorted or open: max. 1 W

Operating temperature range: - 20 °C to + 40 °C

Impedance: 50 Ω

Port matching: > 20 dB

RF connectors: SMA-female

Dimensions: 170 mm x 40 mm x 32 mm

Weight: 280 g
