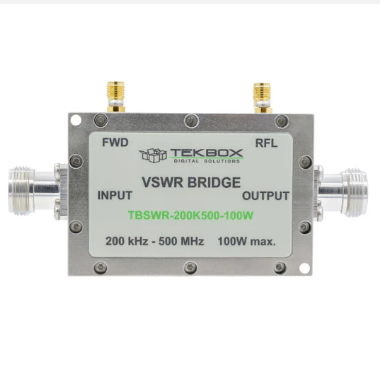

Tekbox TBSWR-200K500 High Power VSWR Bridge (50 Ω, 200 kHz – 500 MHz)

Characterized frequency range: 200 kHz – 500 MHz

Directivity:

200 kHz – 500 MHz    > 20 dB

800 kHz – 50 MHz    > 30 dB

Coupling:

200 kHz – 300 MHz    -40 dB ± 0.3 dB

300 MHz – 500 MHz    -40 dB ± 1 dB

Insertion loss:

200 kHz – 200 MHz    < 0.3 dB

200 MHz – 500 MHz    < 0.7 dB

Max. power:

200 kHz – 200 MHz 100 W CW *)

200 MHz – 500 MHz 70 W CW *)

*) Short time (max. 1 minute): 150 W Output shorted or open: max. 35 W

Operating temperature range: - 20 °C to + 40 °C

Impedance: 50 Ω

Port matching: > 20 dB

RF connectors, through ports: N-female

RF connectors, coupling ports: SMA-female

Dimensions: 113 mm x 60 mm x 35 mm

Weight: 290 g
