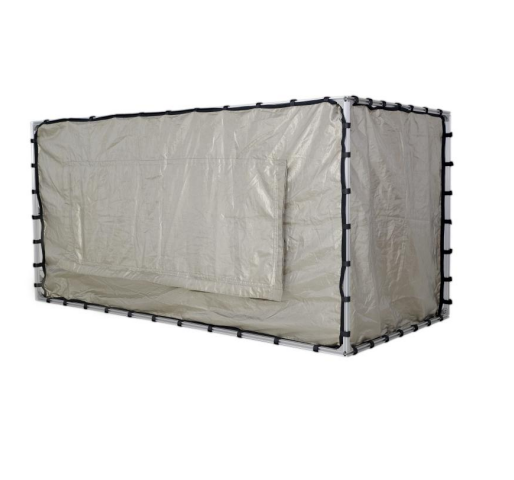

Tekbox TBST100/100/200 Shielded Tent

Outer dimensions: 204 cm x 104 cm x 100 cm

Opening dimensions: 130 cm x 46 cm

Frame: 20 mm x 20 mm extruded aluminium profiles

Shielding: two layer of conductive silver fabrics

Suspension: Velcro tape

Filter panel: 1 x 240V / 10A mains AC filter, C19 socket

2 x 240V / 25A AC/DC filters, attached cables with Banana couplers

3 x N-Female coaxial feed-through connectors with screw caps

1 x BNC-Female coaxial feed-through connector with screw caps

Internal AC-socket: pigtail cable with detachable female Schuko socket + country specific AC

cables with C13 connector

Attenuation: up to 50 dB in the range 10 MHz to 6 GHz, see chapter 3

Weight: 17kg + 3kg (packaging)
