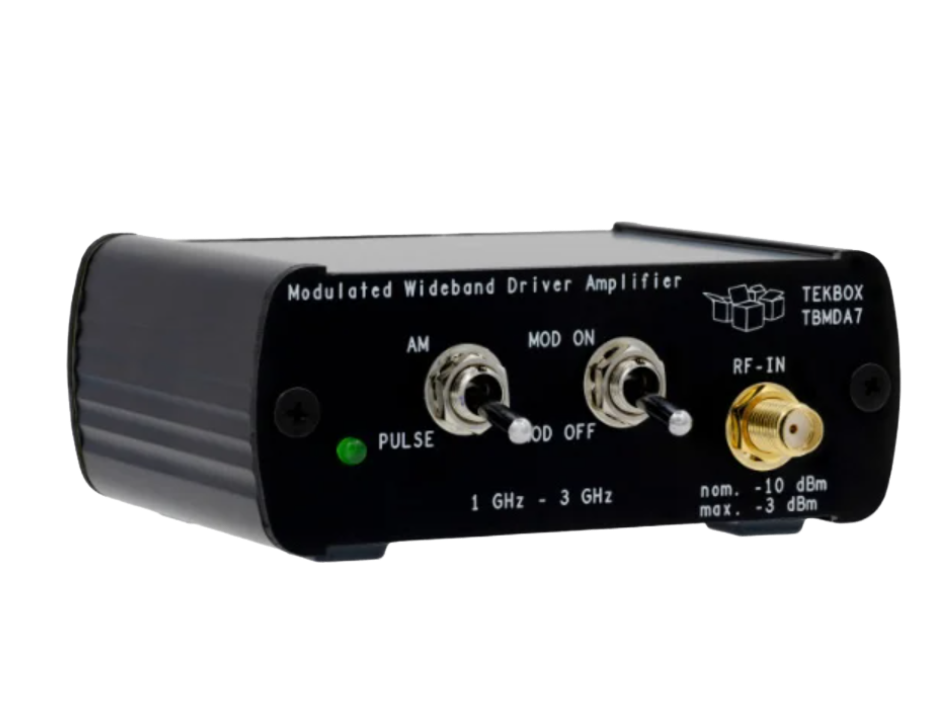

Tekbox TBMDA7 Modulated Wideband Driver Amplifier (1 GHz – 3 GHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBMDA7
USD 658.68
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 1 GHz – 3 GHz
RF Input / Output: 50 Ohm, SMA female; DC supply: Mini-USB-C connector
Nominal supply Voltage: 5V, typ. 800mA; maximum supply voltage 5.5V.
Nominal input power: -10 dBm to – 8 dBm; maximum input power: -5 dBm continuous, -3 dBm max.
Operating temperature range: -20°C to 50°C
Harmonics: < -10 dBc typ. @ 1.5 GHz
Harmonics: < -15 dBc typ. @ 1.5 GHz
Internal modulation frequency AM: 1 kHz ±10%
Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%
Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz
