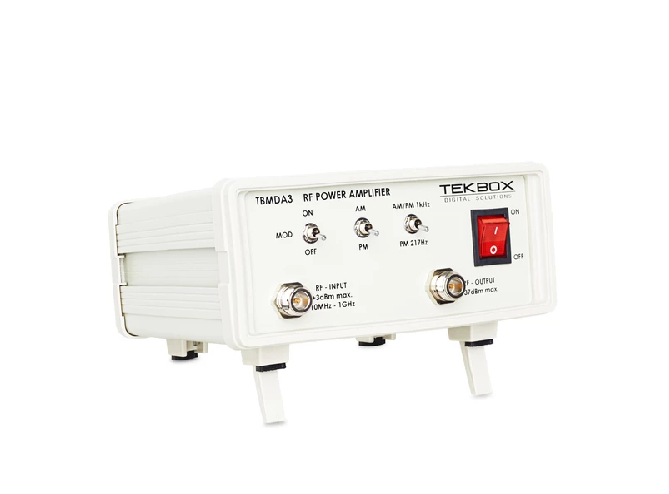

Tekbox TBMDA3 Modulated Power Amplifier

Input / Output: 50 Ohm, N female

Supply Voltage range: 110 V…240 V

Supply power consumption: 20 W

Maximum input power: +3 dBm

Operating temperature range: -20°C to 50°C

Frequency range: 10 MHz – 1 GHz

1dB output compression point @ 10MHz: +36 dBm typ

1dB output compression point @ 100 MHz: +37 dBm typ

1dB output compression point @ 500 MHz: +36 dBm typ

1dB output compression point @ 1 GHz: +34 dBm typ

Harmonics: < – 10 dBc typ.

Internal modulation frequency AM: 1 kHz ±10%

Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz

Gain:

3 MHz: 22.5 dB

7 MHz: 39.6 dB

10 MHz: 42.7 dB

25 MHz: 44.7 dB

100 MHz: 44.7 dB

200 MHz: 44.4 dB

300 MHz: 43.7 dB

400 MHz: 42.6 dB

500 MHz: 42.3 dB

600 MHz: 41.8 dB

700 MHz: 41.9 dB

800 MHz: 40.6 dB

900 MHz: 41.5 dB

1 GHz: 39.9 dB

1.1 GHz: 37.5 dB

1.2 GHz: 29.8 dB
