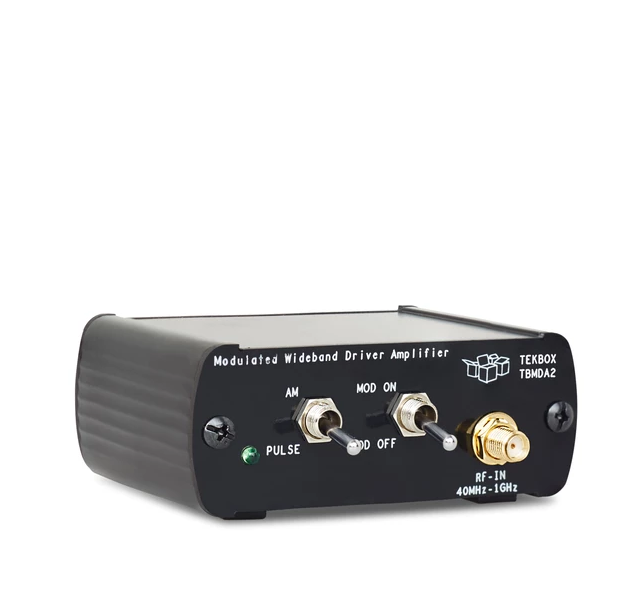

Tekbox TBMDA2 Modulated Wideband Driver Amplifier

Input / Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 700mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: -8dBm continuous, 0 dBm @ 25°C for 5 minutes max.

Operating temperature range: -20°C to 50°C

Frequency range: 10MHz – 1.5 GHz

1dB output compression point @ 10MHz: +24 dBm typ.

1dB output compression point @ 100 MHz: +27 dBm typ.

1dB output compression point @ 1 GHz: +27 dBm typ.

1dB output compression point @ 1.5 GHz: +26.5 dBm typ.

Harmonics: < - 30 dBc typ.

Internal modulation frequency AM: 1 kHz ±10%

Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz

Gain:

Manual
