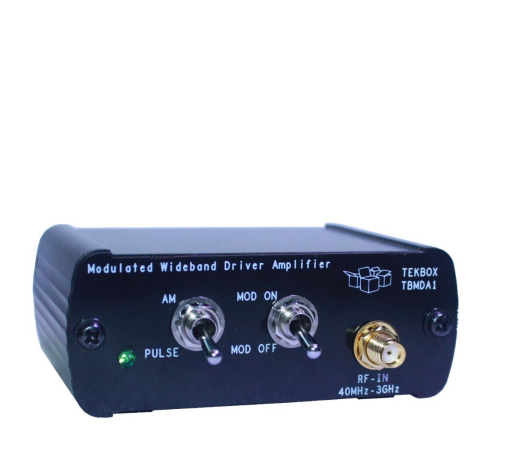

Tekbox TBMDA1 Modulated Wideband Driver Amplifier

Input: 50 Ohm, SMA female

Output: 50 Ohm, SMA female

Nominal supply Voltage: 5V, typ. 235mA, Mini-USB-B connector

Maximum supply voltage: 5.5V

Maximum input power: +9dBm

1dB output compression point @ 40MHz: +21.5dBm

1dB output compression point @ 2 GHz: +22.5dBm

3rd order output intercept point @ 40 MHz: +39dBm

3rd order output intercept point @ 2 GHz: +42dBm

Reverse isolation S12: -45dB

Noise Figure: 3 … 4 dB

Internal modulation frequency AM: 1 kHz ±10%

Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHZ; 12.5% ±20% @ 217 Hz

Gain:

Manual
