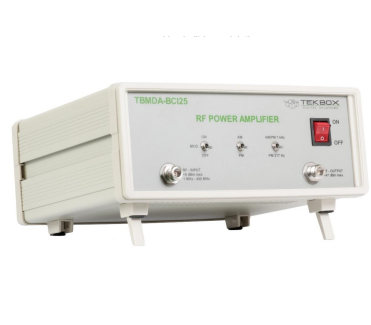

Tekbox TBMDA-BCI25 Modulated Wideband Power Amplifier (1 MHz – 400 MHz)

Input / Output: 50 Ohm, N female

Supply Voltage range: 110V-240 V

Supply power consumption: 108 W @ 220V

Operating temperature range: -20°C to 50°C

Frequency range: 1 MHz – 400 MHz

Small signal gain: 47 dB typ

Gain flatness 1 MHz – 400 MHz/Pin = -3 dBm: 1.5 dB typ

2nd harmonic, 100 MHz, Pout = 45.7 dBm: <-23 dBc typ.

2nd harmonic, 100 MHz, Pout = 40 dBm: <-29 dBc typ.

3rd harmonic, 100 MHz, Pout = 45.7 dBm: <-12 dBc typ.

3rd harmonic, 100 MHz, Pout = 40 dBm: <-19 dBc typ

Total harmonic distortion:

8.6% @100MHz, Pout = 37 dBm typ.

12.1% @100 MHz, Pout = 40 dBm typ.

17.6% @100 MHz, Pout = 43 dBm typ.

25% @100 MHz, Pout = 45.7 dBm typ.

Third order output intercept point: 49 dBm, @100 MHz, ∆ f = 2MHz, typ.

Internal modulation frequency AM: 1 kHz ±20%

Internal modulation frequencies PM: 1 kHz ±20%, 217 Hz ±20%

Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz

Dimensions: 32 cm x 28 cm x 13 cm

Weight: 5.7 kg
