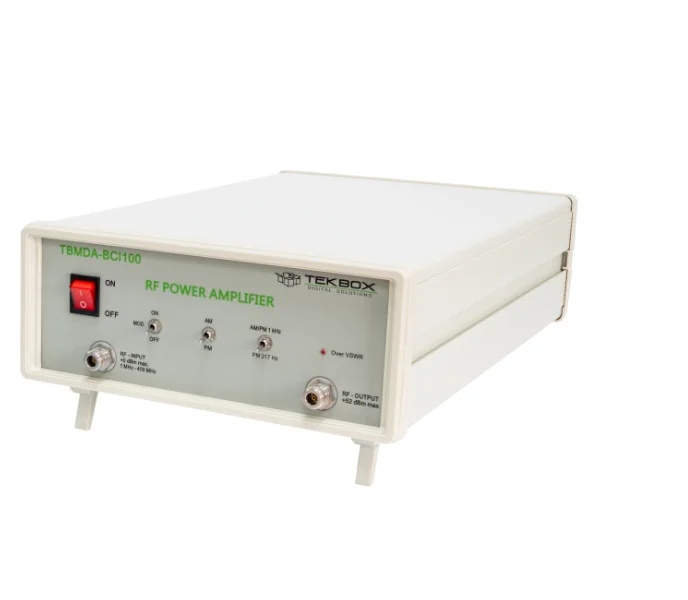

Tekbox TBMDA-BCI100 Modulated Wideband Power Amplifier (1 MHz – 400 MHz)

Input / Output: 50 Ohm, N female

Supply Voltage range: 100 ~ 120 VAC or 200 ~ 240 VAC – 50/60Hz

Supply power consumption: 350 W @ 220V

Operating temperature range: -20°C to 50°C

Frequency range: 1 MHz – 400 MHz

Small signal gain: 52 dB typ.

Gain flatness 1 MHz – 400 MHz / Pin = -3 dBm: 1.5 dB typ.

Maximum output power @ 1 MHz / Pin = 0 dBm: 50.7 dBm (117.5 W) typ.

Maximum output power @ 10 MHz / Pin = 0 dBm: 50.7 dBm (117.5 W) typ.

Maximum output power @ 50 MHz / Pin = 0 dBm: 50.8 dBm (120.2 W) typ.

Maximum output power @ 100 MHz / Pin = 0 dBm: 50.7dBm (117.5 W) typ.

Maximum output power @ 150 MHz / Pin = 0 dBm: 50.8 dBm (120.2 W) typ.

Maximum output power @ 200 MHz / Pin = 0 dBm: 50.5 dBm (112.2 W) typ.

Maximum output power @ 250 MHz / Pin = 0 dBm: 50.5 dBm (112.2 W) typ.

Maximum output power @ 300 MHz / Pin = 0 dBm: 50.6 dBm (114.8 W) typ.

Maximum output power @ 350 MHz / Pin = 0 dBm: 50.6 dBm (114.8 W) typ.

Maximum output power @ 400 MHz / Pin = 0 dBm: 49.5 dBm (89.1 W) typ.

1dB output compression point @ 1 MHz: 50.5 dBm typ. (Pin: -1 dBm)

1dB output compression point @ 10 MHz: 50.5 dBm typ. (Pin: -1 dBm)

1dB output compression point @ 50 MHz: 50.8 dBm typ. (Pin: 0 dBm)

1dB output compression point @ 100 MHz: 50.7 dBm typ. (Pin: 0 dBm)

1dB output compression point @ 150 MHz: 50.5 dBm typ. (Pin: -1 dBm)

1dB output compression point @ 200 MHz: 49.8 dBm typ. (Pin: -2 dBm)

1dB output compression point @ 250 MHz: 49.8 dBm typ. (Pin: -2 dBm)

1dB output compression point @ 300 MHz: 49.7 dBm typ. (Pin: -2 dBm)

1dB output compression point @ 350 MHz: 49.8 dBm typ. (Pin: -2 dBm)

1dB output compression point @ 400 MHz: 48.6 dBm typ. (Pin: -4 dBm)

2 nd harmonic, 100 MHz, Pout = 44.0 dBm: < – 20.2 dBc typ.

2 nd harmonic, 100 MHz, Pout = 50.0 dBm: < – 16.3 dBc typ.

3 rd harmonic, 100 MHz, Pout = 44.0 dBm: < – 12.2 dBc typ.

3 rd harmonic, 100 MHz, Pout = 50 dBm: < – 11.9 dBc typ.
