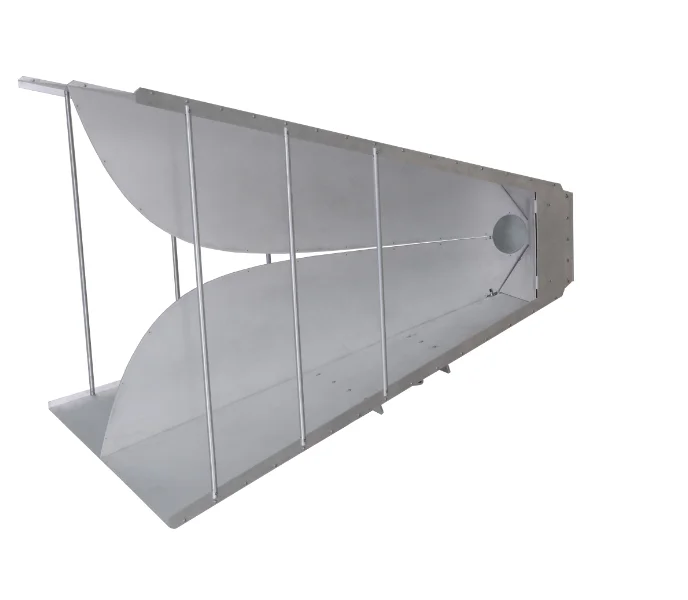

Tekbox TBMA9 MIL-STD Horn Antenna (200MHz – 2 GHz)

Type: MIL-STD double ridged horn

Frequency range: 200 MHz– 2000 MHz

VSWR: <2 (f > 270 MHz)

Isotropic gain at 1m spacing: 4.80 … 8.86 dBi

Antenna factor at 1m spacing: 11.27… 30.13 dB/m

Power handling (Peak/CW): 800 W Short-term (Peak) ; 500 W Continuous (CW)

Nominal impedance: 50 Ω

RF Connector: N type female

Optional Tripod: Model TBTP6

Mechanical Dimensions: L x W x H: 948.35mm x 952.6mm x 703.15mm (37.34” x37.50” x27.68”)

Weight: 16 kg (33 lbs)
