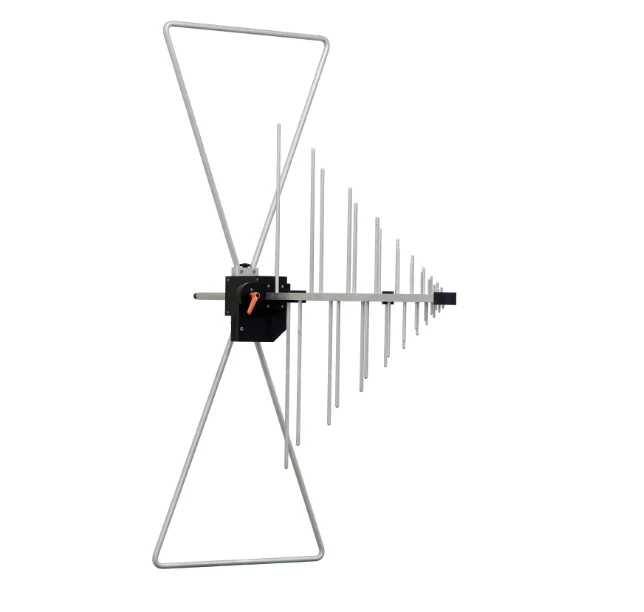

Tekbox TBMA8 Hybrid Measurement Antenna (30 MHz – 3000 MHz)
ManufacturerTekbox(View more products from this manufacturer)
ModelTBMA8
USD 3,425.40
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: Hybrid antenna
Frequency range: 30 MHz– 3000 MHz
VSWR: <2.1 (f > 80 MHz)
Isotropic gain at 3m spacing: -1 … 8 dBi
Antenna factor at 3m spacing: 8 … 34 dB/m
Maximum continuous input RF power: 130W
Nominal impedance: 50 Ω
RF Connector: N type female
Mounting: 22 mm diameter mounting shaft (tube)
Mechanical Dimensions: L x W x H: 1504 mm x 1183 mm x 558 mm (59.2” x 46.6” x 22”)
Weight: 6.7 kg (14.77 lbs)
