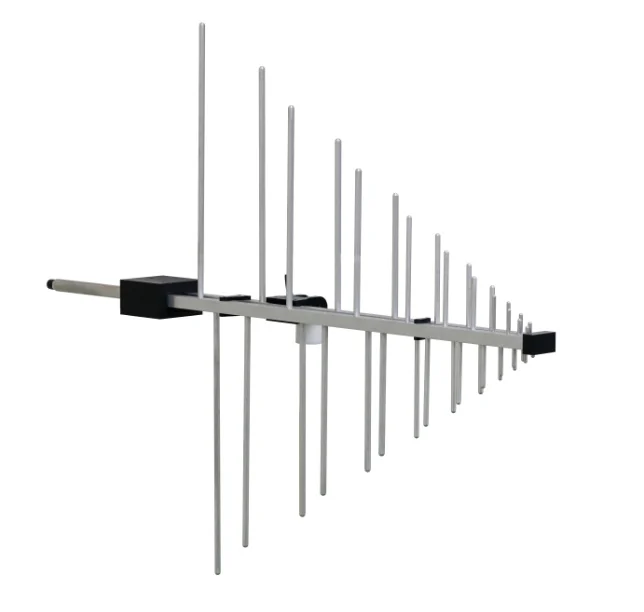

Type: logarithmic periodic
Frequency range: 150 MHz– 3000 MHz
VSWR: < 2.1:1 over the entire frequency range ; 1.3:1 average
Isotropic gain at 3m spacing: 1.5 … 8 dBi
Antenna factor at 3m spacing: 10 … 34 dB/m
Maximum continuous input RF power: 130W
Nominal impedance: 50 Ω
RF Connector: N type female
Mounting: Tiltable adapter at center of gravity with ¼” tripod thread 22 mm diameter mounting shaft (tube)
Mechanical Dimensions: L x W x H: 1133 mm x 940 mm x 100 mm (44.6” x 37” x 3.94”)
Weight: 2.9 kg (6.39 lbs)
