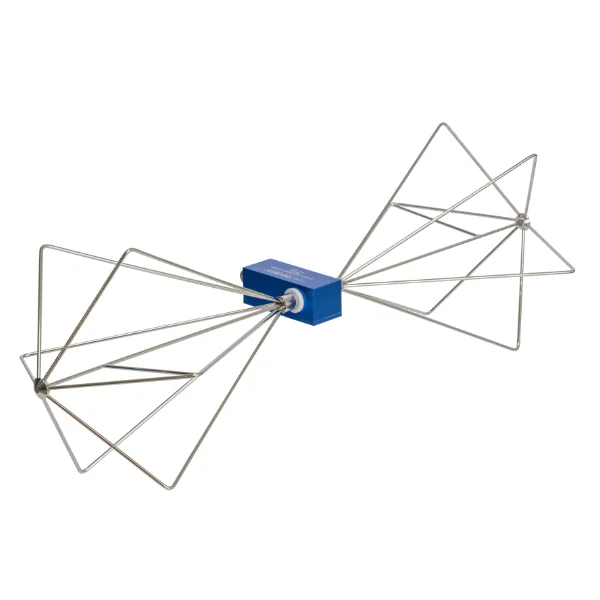

Tekbox TBMA1C Biconical Antenna (20MHz – 1000 MHz)

Type: Passive biconical

Frequency range (Optimized): 20 MHz– 700 MHz

Frequency range (Characterized): 20 MHz– 1000 MHz

VSWR: <2.66 (f > 200 MHz)

Isotropic gain at 3m spacing: -38.64 … 1.26 dBi

Antenna factor at 3m spacing: 14.19 … 40.56 dB/m

Maximum continuous input RF power: 2W

Nominal impedance: 50 Ω

RF Connector: N type female

Matching: 1:2 transformer + 1:1 balun

Tripod Adapter: Thread Size: 1/4 “

Antenna dimensions: L x W x H: 605 mm x 235 mm x 203 mm (23.80” x 9.26” x 8.00”)

Antenna weight: 0.58 kg (1.28 lbs)

Carrying case dimensions: L x W x H: 630 mm x 310 mm x 270 mm (24.80” x 12.2” x 10.6”)

Carrying case weight: 4.4 kg (9.7 lbs)
